NH fuse-switch disconnectors and fuse bases

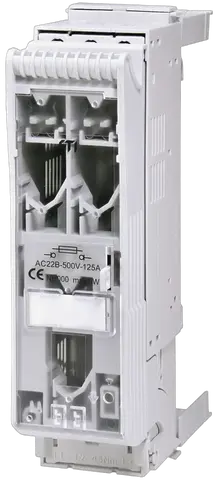

KVL-B-000 3p F50 Bottom

Class name: Fuse switch disconnector
Size: NH000
Voltage type: AC
Function: Fuse switch disconnector
Number of poles: 3
IP rating: IP20
Type of Installation: Busbar mounting
Utilization category: AC-22B, AC-21B
Overvoltage Category: III
Rated Frequency: 40/60 Hz
Max Altitude: ≤ 2000 m
Rated conditional short-circuit current Inc: 80 kA
Mechanical cycles: 1,400
Ambient temperature: -25/55 °C
Rated Insulation Voltage: 800 V
Rated short-time withstand current Icw at 1s: 5 kA
Rated operational current Ie AC-21 A/B at 690V: 80 A
Electrical cycles: 200
Power dissipation: 12 W
Max. rated operational voltage (AC): 690 V
Clamping cross-section: 1.5-50 mm²
Pollution Degree: 2
Max Permissable Power Dissipation per Fuse Link: 12 W
Clamp material: Cu
Rated impulse withstand voltage Uimp: 6 kV

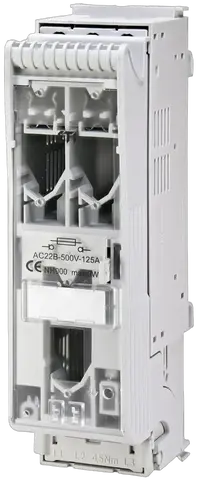

KVL-B-000 3p F50 Top

Class name: Fuse switch disconnector
Size: NH000
Voltage type: AC
Function: Fuse switch disconnector
Number of poles: 3
IP rating: IP20
Type of Installation: Busbar mounting
Utilization category: AC-22B, AC-21B
Overvoltage Category: III
Rated Frequency: 40/60 Hz
Max Altitude: ≤ 2000 m
Rated conditional short-circuit current Inc: 80 kA
Mechanical cycles: 1,400
Ambient temperature: -25/55 °C
Rated Insulation Voltage: 800 V
Rated short-time withstand current Icw at 1s: 5 kA
Rated operational current Ie AC-21 A/B at 690V: 80 A
Electrical cycles: 200
Power dissipation: 12 W
Max. rated operational voltage (AC): 690 V
Clamping cross-section: 1.5-50 mm²
Pollution Degree: 2
Max Permissable Power Dissipation per Fuse Link: 12 W
Clamp material: Cu
Rated impulse withstand voltage Uimp: 6 kV

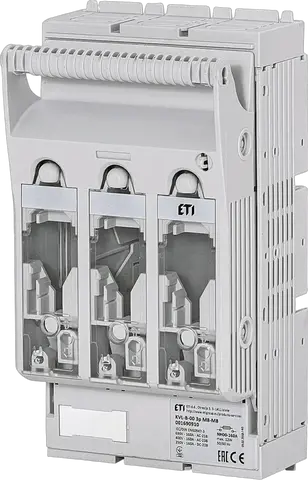

KVL-B-00 3p M8-M8

Class name: Fuse switch disconnector
Size: NH00
Voltage type: AC/DC
Tightening torque: 15-12
Function: Fuse switch disconnector
Number of poles: 3
IP rating: IP20
Type of Installation: Busbar mounting
Utilization category: AC-23B, AC-22B, AC-21B, DC-22B, DC-21B
Overvoltage Category: III
Rated Frequency: 40/60 Hz
Max Altitude: ≤ 2000 m
Rated operational voltage (DC): 440
Rated conditional short-circuit current Inc: 120 kA
Mechanical cycles: 1,600
Ambient temperature: -25/55 °C
Rated Insulation Voltage: 800 V
Rated short-time withstand current Icw at 1s: 5 kA
Rated operational current Ie AC-21 A/B at 690V: 160 A
Electrical cycles: 200
Power dissipation: 14 W
Max. rated operational voltage (AC): 690 V
Terminal screw: M8
Pollution Degree: 3
Max Permissable Power Dissipation per Fuse Link: 12 W
Rated impulse withstand voltage Uimp: 8 kV

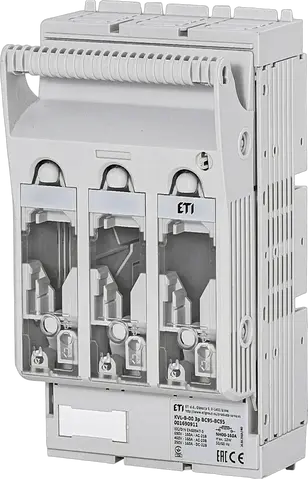

KVL-B-00 3p BC95-BC95

Class name: Fuse switch disconnector
Size: NH00
Voltage type: AC/DC
Tightening torque: 15-12
Function: Fuse switch disconnector
Number of poles: 3
IP rating: IP20
Type of Installation: Busbar mounting
Utilization category: AC-23B, AC-22B, AC-21B, DC-22B, DC-21B
Overvoltage Category: III
Rated Frequency: 40/60 Hz
Max Altitude: ≤ 2000 m
Rated operational voltage (DC): 440
Rated conditional short-circuit current Inc: 120 kA
Mechanical cycles: 1,600
Ambient temperature: -25/55 °C
Rated Insulation Voltage: 800 V
Rated short-time withstand current Icw at 1s: 5 kA
Rated operational current Ie AC-21 A/B at 690V: 160 A
Electrical cycles: 200
Power dissipation: 14 W
Max. rated operational voltage (AC): 690 V
Clamping cross-section: 1.5-90 mm²
Terminal screw: M8
Pollution Degree: 3
Max Permissable Power Dissipation per Fuse Link: 12 W
Clamp material: Al/Cu
Rated impulse withstand voltage Uimp: 8 kV

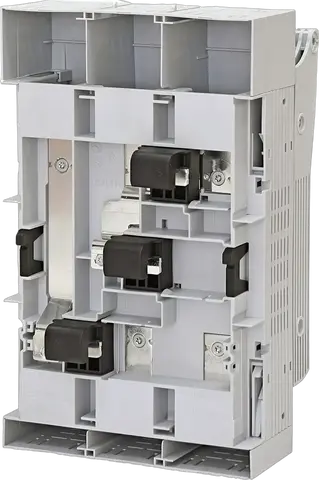

KVL-B-1 3p M10-M10

Class name: Fuse switch disconnector
Size: NH1
Voltage type: AC/DC
Tightening torque: 35-30
Function: Fuse switch disconnector
Number of poles: 3
IP rating: IP20
Type of Installation: Busbar mounting
Utilization category: AC-23B, AC-22B, AC-21B, DC-22B, DC-21B
Overvoltage Category: III
Rated Frequency: 40/60 Hz
Max Altitude: ≤ 2000 m
Rated operational voltage (DC): 440
Rated conditional short-circuit current Inc: 120 kA
Ambient temperature: -25/55 °C
Rated Insulation Voltage: 800 V
Rated short-time withstand current Icw at 1s: 8.6 kA
Rated operational current Ie AC-21 A/B at 690V: 250 A
Power dissipation: 22 W
Max. rated operational voltage (AC): 690 V
Terminal screw: M10
Pollution Degree: 3
Max Permissable Power Dissipation per Fuse Link: 23 W
Rated impulse withstand voltage Uimp: 8 kV

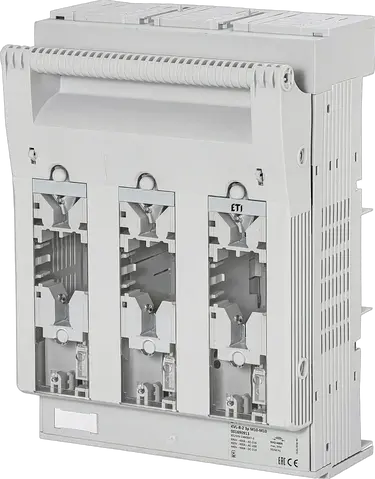

KVL-B-2 3p M10-M10

Class name: Fuse switch disconnector
Size: NH2
Voltage type: AC/DC
Tightening torque: 35-30
Function: Fuse switch disconnector
Number of poles: 3
IP rating: IP20
Type of Installation: Busbar mounting
Utilization category: AC-23B, AC-22B, AC-21B, DC-22B, DC-21B
Overvoltage Category: III
Rated Frequency: 40/60 Hz
Max Altitude: ≤ 2000 m
Rated operational voltage (DC): 440
Rated conditional short-circuit current Inc: 120 kA
Ambient temperature: -25/55 °C
Rated Insulation Voltage: 800 V
Rated short-time withstand current Icw at 1s: 15 kA
Rated operational current Ie AC-21 A/B at 690V: 400 A
Power dissipation: 36 W
Max. rated operational voltage (AC): 690 V
Terminal screw: M10
Pollution Degree: 3
Max Permissable Power Dissipation per Fuse Link: 34 W
Rated impulse withstand voltage Uimp: 8 kV

KVL-B-3 3p M10-M10

Class name: Fuse switch disconnector
Size: NH3
Voltage type: AC/DC
Tightening torque: 35-30
Function: Fuse switch disconnector
Number of poles: 3
IP rating: IP20
Type of Installation: Busbar mounting
Utilization category: AC-23B, AC-22B, AC-21B, DC-22B, DC-21B
Overvoltage Category: III
Rated Frequency: 40/60 Hz
Max Altitude: ≤ 2000 m
Rated operational voltage (DC): 440
Rated conditional short-circuit current Inc: 120 kA
Ambient temperature: -25/55 °C
Rated Insulation Voltage: 800 V
Rated short-time withstand current Icw at 1s: 15 kA
Rated operational current Ie AC-21 A/B at 690V: 630 A
Power dissipation: 86 W
Max. rated operational voltage (AC): 690 V
Terminal screw: M10
Pollution Degree: 3
Max Permissable Power Dissipation per Fuse Link: 48 W
Rated impulse withstand voltage Uimp: 8 kV

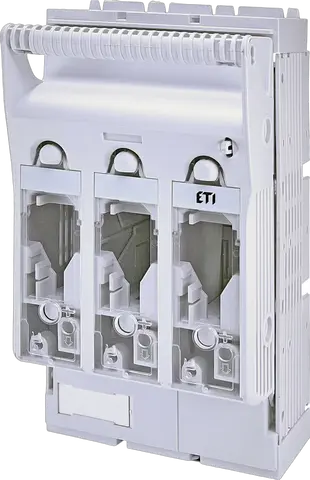

KVL-B/FT-00 3p M8-M8

Class name: Fuse switch disconnector
Size: NH00
Voltage type: AC/DC
Tightening torque: 15-12
Function: Fuse switch disconnector
Number of poles: 3
IP rating: IP20
Type of Installation: Busbar mounting
Utilization category: AC-23B, AC-22B, AC-21B, DC-22B, DC-21B
Overvoltage Category: III
Rated Frequency: 40/60 Hz
Max Altitude: ≤ 2000 m
Rated operational voltage (DC): 440
Rated conditional short-circuit current Inc: 120 kA
Mechanical cycles: 1,600
Ambient temperature: -25/55 °C
Rated Insulation Voltage: 800 V
Rated short-time withstand current Icw at 1s: 5 kA
Rated operational current Ie AC-21 A/B at 690V: 160 A
Electrical cycles: 200
Power dissipation: 14 W
Max. rated operational voltage (AC): 690 V
Terminal screw: M8
Pollution Degree: 3
Max Permissable Power Dissipation per Fuse Link: 12 W
Rated impulse withstand voltage Uimp: 8 kV

KVL-B/FT-1 3p M10-M10

Class name: Fuse switch disconnector
Size: NH1
Voltage type: AC/DC
Tightening torque: 35-30
Function: Fuse switch disconnector
Number of poles: 3
IP rating: IP20
Type of Installation: Busbar mounting
Utilization category: AC-23B, AC-22B, AC-21B, DC-22B, DC-21B
Overvoltage Category: III
Rated Frequency: 40/60 Hz
Max Altitude: ≤ 2000 m
Rated operational voltage (DC): 440
Rated conditional short-circuit current Inc: 120 kA
Ambient temperature: -25/55 °C
Rated Insulation Voltage: 800 V
Rated short-time withstand current Icw at 1s: 8.6 kA
Rated operational current Ie AC-21 A/B at 690V: 250 A
Power dissipation: 22 W
Max. rated operational voltage (AC): 690 V
Terminal screw: M10
Pollution Degree: 3
Max Permissable Power Dissipation per Fuse Link: 23 W
Rated impulse withstand voltage Uimp: 8 kV

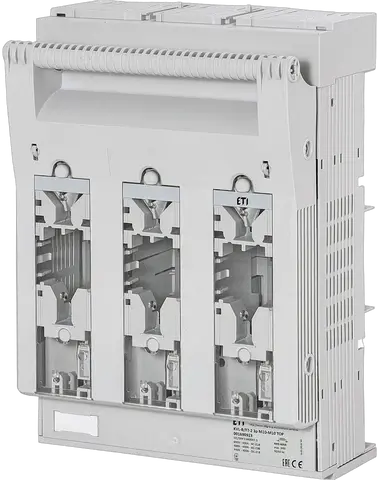

KVL-B/FT-2 3p M10-M10 TOP

Class name: Fuse switch disconnector
Size: NH2
Voltage type: AC/DC
Tightening torque: 35-30
Function: Fuse switch disconnector
Number of poles: 3
IP rating: IP20
Type of Installation: Busbar mounting
Utilization category: AC-23B, AC-22B, AC-21B, DC-22B, DC-21B
Overvoltage Category: III
Rated Frequency: 40/60 Hz
Max Altitude: ≤ 2000 m
Rated operational voltage (DC): 440
Rated conditional short-circuit current Inc: 120 kA
Ambient temperature: -25/55 °C
Rated Insulation Voltage: 800 V
Rated short-time withstand current Icw at 1s: 15 kA
Rated operational current Ie AC-21 A/B at 690V: 400 A
Power dissipation: 36 W
Max. rated operational voltage (AC): 690 V
Terminal screw: M10
Pollution Degree: 3
Max Permissable Power Dissipation per Fuse Link: 34 W
Rated impulse withstand voltage Uimp: 8 kV

KVL-B/FT-2 3p M10-M10 BOTTOM

Class name: Fuse switch disconnector
Size: NH2
Voltage type: AC/DC
Tightening torque: 35-30
Function: Fuse switch disconnector
Number of poles: 3
IP rating: IP20
Type of Installation: Busbar mounting
Utilization category: AC-23B, AC-22B, AC-21B, DC-22B, DC-21B
Overvoltage Category: III
Rated Frequency: 40/60 Hz
Max Altitude: ≤ 2000 m
Rated operational voltage (DC): 440
Rated conditional short-circuit current Inc: 120 kA
Ambient temperature: -25/55 °C
Rated Insulation Voltage: 800 V
Rated short-time withstand current Icw at 1s: 15 kA
Rated operational current Ie AC-21 A/B at 690V: 400 A
Power dissipation: 36 W
Max. rated operational voltage (AC): 690 V
Terminal screw: M10
Pollution Degree: 3
Max Permissable Power Dissipation per Fuse Link: 34 W
Rated impulse withstand voltage Uimp: 8 kV

KVL-B/FT-3 3p M10-M10

Class name: Fuse switch disconnector
Size: NH3
Voltage type: AC/DC
Tightening torque: 35-30
Function: Fuse switch disconnector
Number of poles: 3
IP rating: IP20
Type of Installation: Busbar mounting
Utilization category: AC-23B, AC-22B, AC-21B, DC-22B, DC-21B
Overvoltage Category: III
Rated Frequency: 40/60 Hz
Max Altitude: ≤ 2000 m
Rated operational voltage (DC): 440
Rated conditional short-circuit current Inc: 120 kA
Ambient temperature: -25/55 °C
Rated Insulation Voltage: 800 V
Rated short-time withstand current Icw at 1s: 15 kA
Rated operational current Ie AC-21 A/B at 690V: 630 A
Power dissipation: 86 W
Max. rated operational voltage (AC): 690 V
Terminal screw: M10
Pollution Degree: 3
Max Permissable Power Dissipation per Fuse Link: 48 W
Rated impulse withstand voltage Uimp: 8 kV

KVL-B/SF-1 1p M10-M10

Class name: Fuse switch disconnector
Size: NH1
Voltage type: AC/DC
Tightening torque: 35-30
Function: Fuse switch disconnector
Number of poles: 3
IP rating: IP20
Type of Installation: Busbar mounting
Utilization category: AC-23B, AC-22B, AC-21B, DC-22B, DC-21B
Overvoltage Category: III
Rated Frequency: 40/60 Hz
Max Altitude: ≤ 2000 m
Rated operational voltage (DC): 440
Rated conditional short-circuit current Inc: 120 kA
Ambient temperature: -25/55 °C
Rated Insulation Voltage: 800 V
Rated short-time withstand current Icw at 1s: 8.6 kA
Rated operational current Ie AC-21 A/B at 690V: 250 A
Power dissipation: 7 W
Max. rated operational voltage (AC): 690 V
Terminal screw: M10
Pollution Degree: 3
Max Permissable Power Dissipation per Fuse Link: 23 W
Rated impulse withstand voltage Uimp: 8 kV

KVL-B/SF-3 1p M10-M10

Class name: Fuse switch disconnector
Size: NH3
Voltage type: AC/DC
Tightening torque: 35-30
Function: Fuse switch disconnector
Number of poles: 3
IP rating: IP20
Type of Installation: Busbar mounting
Utilization category: AC-23B, AC-22B, AC-21B, DC-22B, DC-21B
Overvoltage Category: III
Rated Frequency: 40/60 Hz
Max Altitude: ≤ 2000 m
Rated operational voltage (DC): 440
Rated conditional short-circuit current Inc: 120 kA
Ambient temperature: -25/55 °C
Rated Insulation Voltage: 800 V
Rated short-time withstand current Icw at 1s: 15 kA
Rated operational current Ie AC-21 A/B at 690V: 630 A
Power dissipation: 18.3 W
Max. rated operational voltage (AC): 690 V
Terminal screw: M10
Pollution Degree: 3
Max Permissable Power Dissipation per Fuse Link: 48 W
Rated impulse withstand voltage Uimp: 8 kV

Introduction

KVL-B-000 3p F50 Bottom

KVL-B-000 3p F50 Top

KVL-B-00 3p M8-M8

KVL-B-00 3p BC95-BC95

KVL-B-1 3p M10-M10

KVL-B-2 3p M10-M10

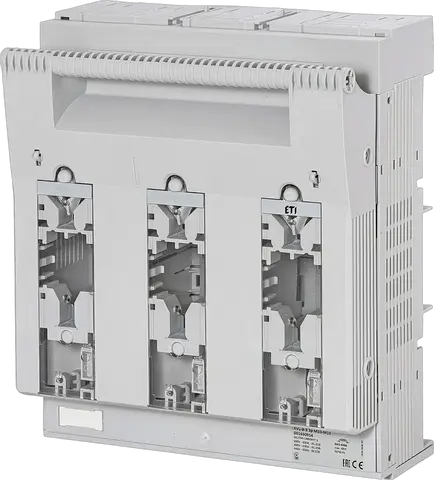

KVL-B-3 3p M10-M10

KVL-B/FT-00 3p M8-M8

KVL-B/FT-1 3p M10-M10

KVL-B/FT-2 3p M10-M10 TOP

KVL-B/FT-2 3p M10-M10 BOTTOM

KVL-B/FT-3 3p M10-M10

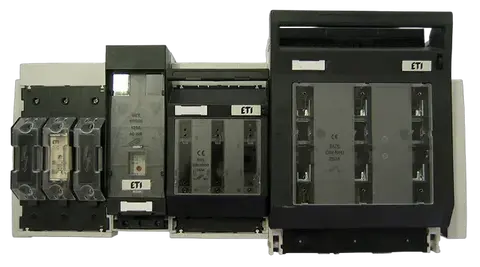

KVL-B/SF-1 1p M10-M10

KVL-B/SF-3 1p M10-M10

{title}

Some title of document or something 0

Some title of document or something 1

Some title of document or something 2

Some title of document or something 3

Some title of document or something 4

Some title of document or something 5

Some title of document or something 6

Some title of document or something 7

Some title of document or something 8

Some title of document or something 9

Some title of document or something 10

Some title of document or something 11

Some title of document or something 12

Some title of document or something 13

Some title of document or something 14

Some title of document or something 15

Some title of document or something 16

Some title of document or something 17

Some title of document or something 18

Some title of document or something 19

Showing top picks

Cookies Save settings

Compare Items

Product history

Some title of document or something 0

Some title of document or something 1

Some title of document or something 2

Some title of document or something 3

Some title of document or something 4

Some title of document or something 5

Some title of document or something 6

Some title of document or something 7

Some title of document or something 8

Some title of document or something 9

Some title of document or something 10

Some title of document or something 11

Some title of document or something 12

Some title of document or something 13

Some title of document or something 14

Some title of document or something 15

Some title of document or something 16

Some title of document or something 17

Some title of document or something 18

Some title of document or something 19

Cookies
