004774114

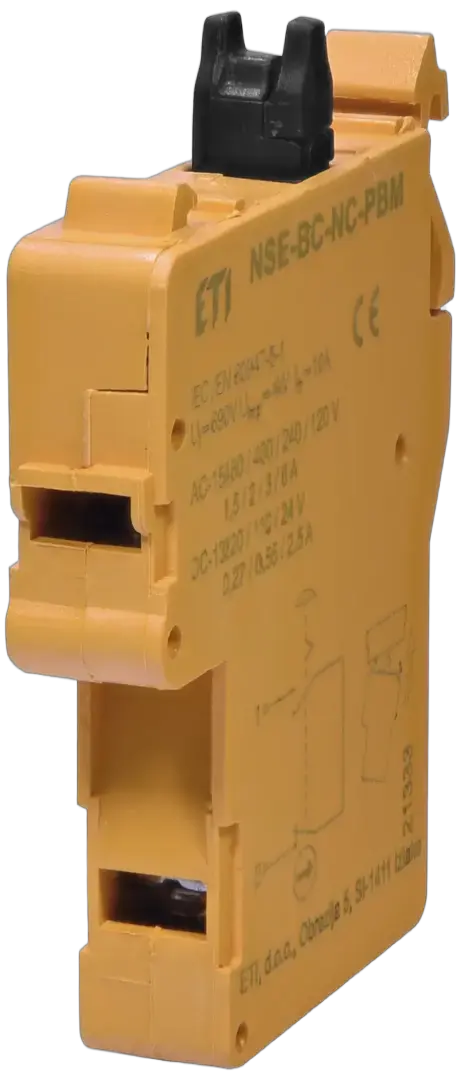

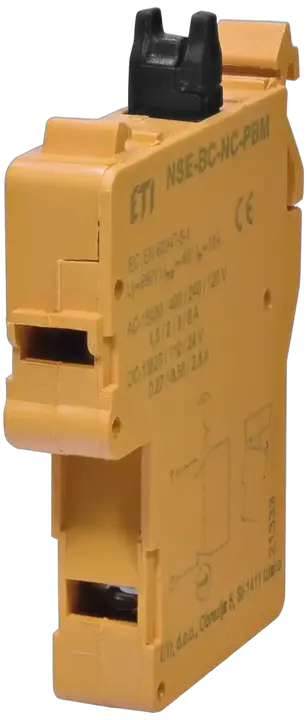

NSE-BC-NC-PBM Push button accesories
- ETI Code:
- 004774114
- Function:
- Contact block with self-monitoring function
- Rated current:
- 1.5/2.5 A
- Rated AC voltage:
- 120/400 V
- Rated DC voltage:
- 24/220 V
- No. of NC contacts:
- 1
- Rated impulse withstand voltage Uimp:
- 4 kV
- Thermal current Ith:
- 10 A
- Voltage type:
- AC/DC
- Rated Insulation Voltage:
- 690 V
21 Logistics
Product
- Net weight of the product
- 0.019 kg
- Net width
- 9.8 mm
- Net height
- 44 mm
- Net depth
- 60.07 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 7909712855355
- Basic packaging weight
- 0.23 kg
- Basic Packaging Dimensions Height
- 11.8 mm
- Basic Packaging Dimensions Width
- 130 mm
- Basic Packaging Dimensions Depth
- 200 mm
- Basic packaging volume
- 0.307 dm³
Transport Packaging
- Transport packaging quantity
- 10 pcs
- EAN code for a transport packaging
- 17909712855352
- Transport packaging weight
- 0.23 kg
- Transport Packaging Dimensions Height
- 11.8 mm
- Transport Packaging Dimensions Width
- 250 mm
- Transport Packaging Dimensions Depth
- 350 mm
- Transport packaging volume
- 1.032 dm³
- Pallet quantity
- 7,560 pcs
- Customs tariff
- 85389099
