004774155

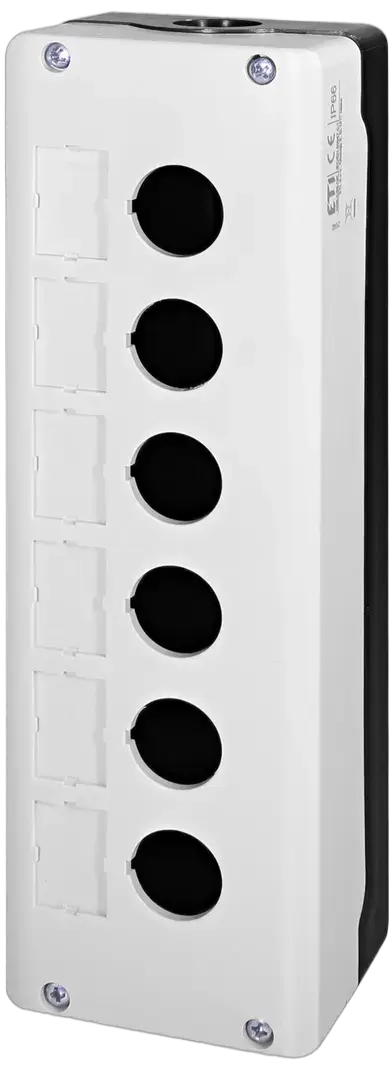

NSE-CS6-GR Enclosure
- ETI Code:
- 004774155
- Function:
- Control station enclosure
- To use with:
- Integral pushbuttons and LED indicators
- Color:
- Grey, Black
- Standards:
- IEC 60947-5-1, IEC 50102, IEC 60529, UL 508, UL 50
- Application:
- External / Internal
- Approvals:
- CE
- Working Temperature:
- -25-70 °C
- Type description:
- 6 holes
- IP rating:
- IP66(NEMA4X)
- Material:
- Polycarbonate
14 Logistics
Product
- Net weight of the product
- 0.23 kg
- Net width
- 249 mm
- Net height
- 79.1 mm
- Net depth
- 58.2 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 7909712855645
- Transport packaging weight
- 0.32 kg
- Transport Packaging Dimensions Height
- 85 mm
- Transport Packaging Dimensions Width
- 62 mm
- Transport Packaging Dimensions Depth
- 273 mm
- Transport packaging volume
- 1.439 dm³
- Pallet quantity
- 695 pcs
- Customs tariff
- 85381000
