002471400
Obsolete

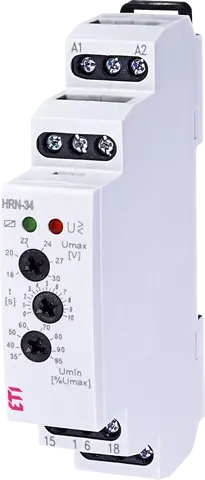

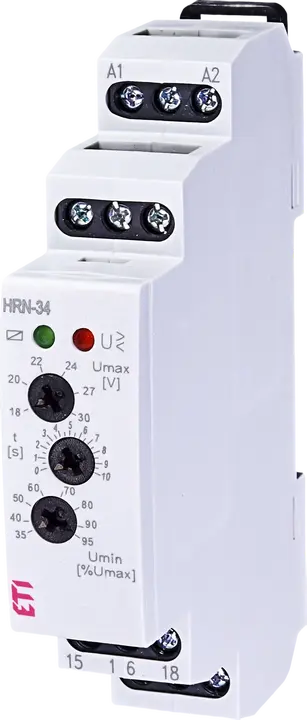

*HRN-34 Control relay
- ETI Code:
- 002471400
- Height:
- 90 mm
- Width:
- 18 mm
- Category:
- Voltage monitoring relay HRN-33, HRN-34, HRN-35
- Catalogue Group:
- Control and measuring Voltage relays
- Catalogue Subgroup:
- Voltage monitoring relay
- Type description:
- Voltage monitoring relay HRN-33, HRN-34, HRN-35
- Function:
- Monitoring and Control relays
- Supply Voltage:
- 6-30 V
- Type of Control:
- Umax, Umin
- Number of contacts:
- 1
- Voltage type:
- DC
- Maximum load capacity at AC1:
- 4,000 VA
- Rated current:
- 16 A
- No. of CO contacts:
- 1
- DC rated control supply voltage Uc:
- 30 V
6 Documents
15 Logistics
Product
- Net weight of the product
- 0.1 kg
- Net width
- 17.5 mm
- Net height
- 91.3 mm
- Net depth
- 64.09 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895423812
- Basic packaging weight
- 0.09 kg
- Basic packaging volume
- 0.11 dm³
Transport Packaging
- Transport packaging quantity
- 10 pcs
- EAN code for a transport packaging
- 3838895423829
- Transport packaging weight
- 1 kg
- Transport packaging volume
- 1.6 dm³
- Pallet quantity
- 8,000 pcs
- Customs tariff
- 85364900
12 ETIM
- Single-phase under voltage possible
- Yes
- Width
- 18 mm
- Type of voltage measuring range
- DC
- Single-phase over voltage possible
- Yes
- Depth
- 65 mm
- Type of electric connection
- Clip connection
- Number of contacts as change-over contact
- 1
- Height
- 90 mm
- Response value voltage(Min)
- 6 V
- Voltage measuring range 1(Min)
- 18 V
- Voltage measuring range 1(Max)
- 30 V
- Response value voltage(Max)
- 30 V
ETIM Classification – Version 9.0
1 Diagrams
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
