001100120
Obsolete

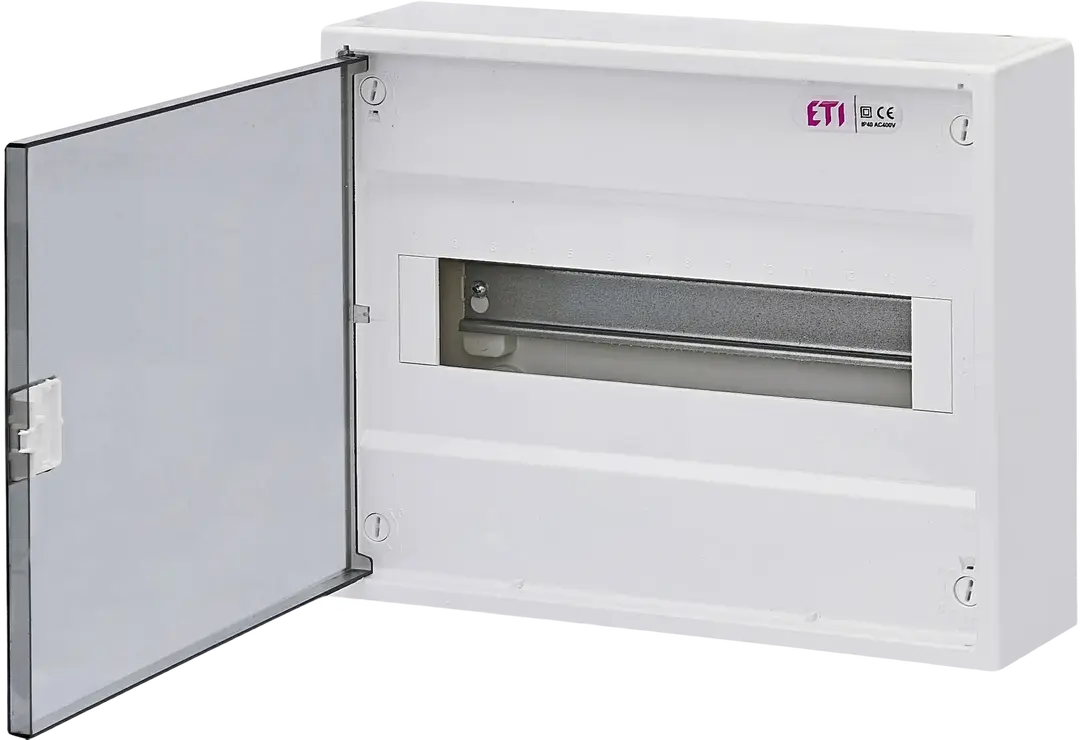

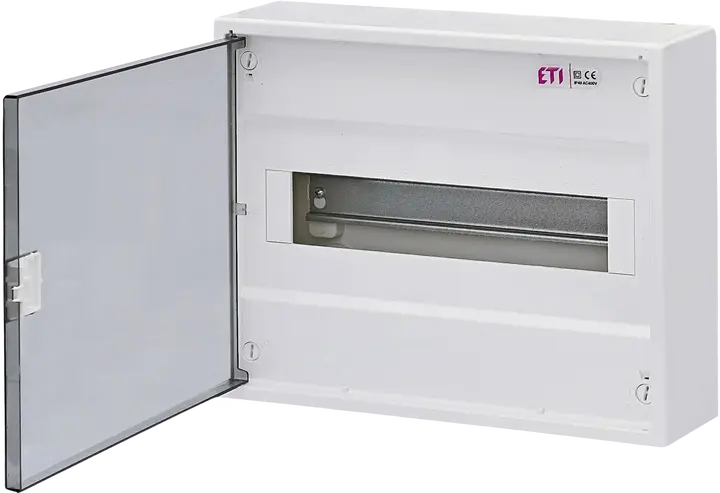

* ACTH12PT Distribution box
- ETI Code:
- 001100120
- Rows (legacy):
- 1
- Catalogue Group:
- ACT wall mounted plastic distribution boxes
- Type of door:
- Transparent
- Frame Size:
- 12(+2)
- Type of Installation:
- Surface mounted
- IP rating:
- IP40
- Frame size (Nr. of rows):
- 1
- No. of modules (total/per row):
- 14
- Door (material, color):
- transparent, plastic
- Enclosure base (material, color):
- plastic, white
- Protection Class:
- II
15 Logistics
Product
- Net weight of the product
- 1.2 kg
- Net width
- 310.1 mm
- Net height
- 251.3 mm
- Net depth
- 96.07 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895826507
- Basic packaging weight
- 1.3 kg
- Basic packaging volume
- 41.6 dm³
Transport Packaging
- Transport packaging quantity
- 5 pcs
- EAN code for a transport packaging
- 3838895826514
- Transport packaging weight
- 6.5 kg
- Transport packaging volume
- 41 dm³
- Pallet quantity
- 200 pcs
- Customs tariff
- 85381000
14 ETIM
- Width
- 310 mm
- DIN-rail
- Yes
- Type of covering
- Door
- Transparent cover/door
- Yes
- Degree of protection (IP)
- IP40
- Mounting method
- Surface mounted
- Number of rows
- 1
- Housing material
- Plastic
- Depth
- 96 mm
- Colour
- White
- Height
- 251 mm
- EMC-version
- Yes
- Width in number of modular spacings
- 14
- RAL-number
- 9,003
ETIM Classification – Version 9.0
