ETI plastic distribution boards DIDO are designed for the installation and organization of modular protective and control devices in residential, commercial and selected industrial applications. The range includes surface-mounted and flush-mounted versions for indoor installations, as well as IP65 wall-mounted boards for environments requiring increased protection against dust and moisture. Depending on the series, distribution boards are available with transparent or white plastic doors and in a wide range of modular capacities.

001100305

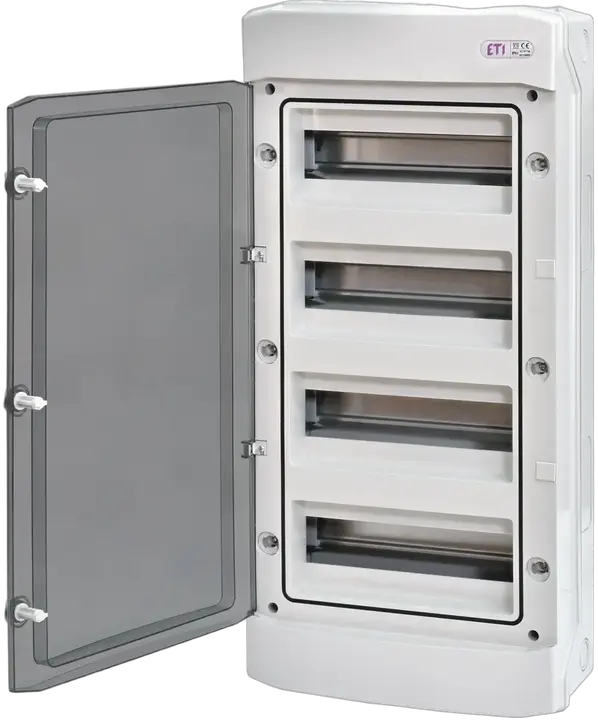

Image of ECH-48PTu

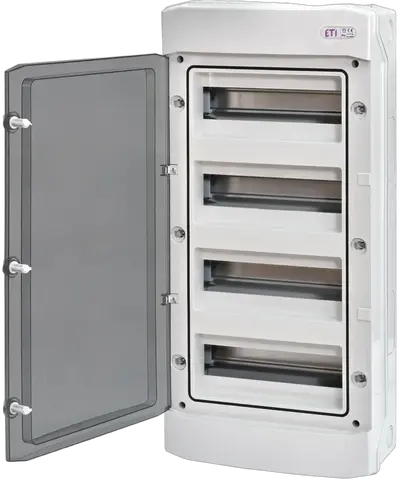

ECH-48PTu Distribution box

ETI Code:: 001100305
Rows (legacy):: 4
Catalogue Group:: ECH wall mounted plastic distribution boxes IP65
Type of door:: Transparent door
Type of Installation:: Surface mounted
IP rating:: IP65
Frame size (Nr. of rows):: 4
No. of modules (total/per row):: 48/12
Door (material, color):: transparent, plastic
Rated DC voltage:: 1500 V

Product

Net weight of the product: 3.214 kg
Stock unit of measure: pcs

Transport Packaging

Transport packaging quantity: 1 pcs
EAN code for a transport packaging: 3838895872818
Transport packaging weight: 3.22 kg
Transport Packaging Dimensions Height: 318 mm
Transport Packaging Dimensions Width: 663 mm
Transport Packaging Dimensions Depth: 142 mm
Transport packaging volume: 29.938 dm³
Pallet quantity: 51 pcs
Customs tariff: 85381000
