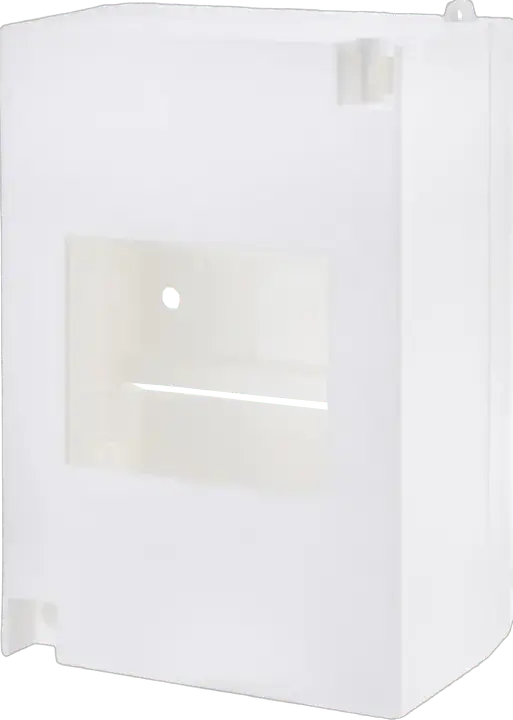

001101045
EC 3+1 Distribution box
- ETI Code:
- 001101045
- Rows (legacy):
- 1
- Catalogue Group:
- EC Surface mounted distribution board IP30
- Type of door:
- Without door
- Frame Size:
- 4
- Type of Installation:
- Surface mounted
- IP rating:
- IP30
- Frame size (Nr. of rows):
- 1
- No. of modules (total/per row):
- 4
- Door (material, color):
- white, plastic
- Enclosure base (material, color):
- plastic, white
- Glow wire test (°C):
- 650 °C
- Rated DC voltage:
- 400 V
- Rated current:
- 63 A
- Rated AC voltage:
- 400 V
21 Logistics
Product
- Net weight of the product
- 0.086 kg
- Net width
- 86.7 mm
- Net height
- 138.7 mm
- Net depth
- 58 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895672814
- Basic packaging weight
- 0.086 kg
- Basic Packaging Dimensions Height
- 137 mm
- Basic Packaging Dimensions Width
- 87 mm
- Basic Packaging Dimensions Depth
- 57 mm
- Basic packaging volume
- 0.679 dm³
Transport Packaging
- Transport packaging quantity
- 10 pcs
- EAN code for a transport packaging
- 3838895672821
- Transport packaging weight
- 1.36 kg
- Transport Packaging Dimensions Height
- 300 mm
- Transport Packaging Dimensions Width
- 180 mm
- Transport Packaging Dimensions Depth
- 144 mm
- Transport packaging volume
- 7.776 dm³
- Pallet quantity
- 22,400 pcs
- Customs tariff
- 85381000
13 ETIM
- Width
- 87 mm
- DIN-rail
- Yes
- Type of covering
- None
- Degree of protection (IP)
- IP30
- Mounting method
- Surface mounted
- Number of rows
- 1
- Housing material
- Plastic
- Depth
- 57 mm
- Colour
- White
- Cover model
- With notch
- Height
- 137 mm
- Width in number of modular spacings
- 4
- RAL-number
- 9,003
ETIM Classification – Version 9.0
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
24 Tags
001101045Distribution boxEC 3+1ETIBOXDistribution boards DIDODIDO-EIP30Surface mountedSurface mountedInternationalEnclosures, distribution boards, equipment ETIBOXDistribution boards and enclosures DIDOPlastic boardsNo. of modules (total/per row): 4/4Glow wire test (°C): 650 °CDoor (material, color): white, plasticFrame size (Nr. of rows): 1Enclosure base (material, color): white, plasticIP rating: IP30Rated AC voltage: 400 V/400 VType of Installation: Surface mountedRated DC voltage: 400 V/400 VRated current: 63 A/63 ADistribution box Type of Installation: Surface mounted IP rating: IP30 Frame size (Nr. of rows): 1 No. of modules (total/per row): 4/4 Door (material, color): white, plastic Enclosure base (material, color): white, plastic
Similar Products 79 All Products
001100140
ECT4PT
- Class name
- Distribution box
- Type of Installation
- Surface mounted
- IP rating
- IP40
- Frame size (Nr. of rows)
- 1
- No. of modules (total/per row)
- 4
001100141
ECT4PO
- Class name
- Distribution box
- Type of Installation
- Surface mounted
- IP rating
- IP40
- Frame size (Nr. of rows)
- 1
- No. of modules (total/per row)
- 4
001100142

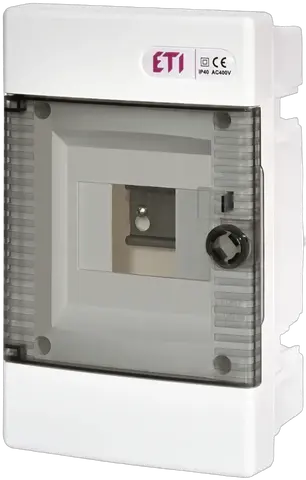

ECM4PT
- Class name
- Distribution box
- Type of Installation
- Flush mounted
- IP rating
- IP40
- Frame size (Nr. of rows)
- 1
- No. of modules (total/per row)
- 4
001100143
ECM4PO
- Class name
- Distribution box
- Type of Installation
- Flush mounted
- IP rating
- IP40
- Frame size (Nr. of rows)
- 1
- No. of modules (total/per row)
- 4
001100240
ACT12PT
- Class name
- Distribution box
- Type of Installation
- Surface mounted
- IP rating
- IP40
- Frame size (Nr. of rows)
- 1
- No. of modules (total/per row)
- 12
001100241
ACT24PT
- Class name
- Distribution box
- Type of Installation
- Surface mounted
- IP rating
- IP40
- Frame size (Nr. of rows)
- 2
- No. of modules (total/per row)
- 24/12
001100242
ACT36PT
- Class name
- Distribution box
- Type of Installation
- Surface mounted
- IP rating
- IP40
- Frame size (Nr. of rows)
- 3
- No. of modules (total/per row)
- 36/12
001100243
ACT12PO
- Class name
- Distribution box
- Type of Installation
- Surface mounted
- IP rating
- IP40
- Frame size (Nr. of rows)
- 1
- No. of modules (total/per row)
- 12
001100244

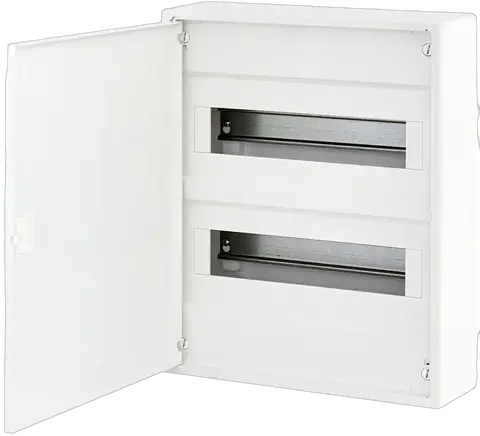

ACT24PO
- Class name
- Distribution box
- Type of Installation
- Surface mounted
- IP rating
- IP40
- Frame size (Nr. of rows)
- 2
- No. of modules (total/per row)
- 24/12
001100245

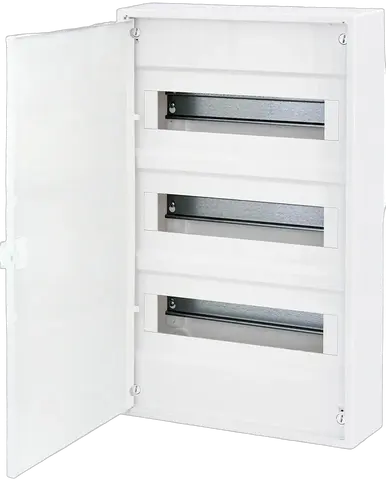

ACT36PO
- Class name
- Distribution box
- Type of Installation
- Surface mounted
- IP rating
- IP40
- Frame size (Nr. of rows)
- 3
- No. of modules (total/per row)
- 36/12
001100270
ECT 4x18PT
- Class name
- Distribution box
- Type of Installation
- Surface mounted
- IP rating
- IP40
- Frame size (Nr. of rows)
- 4
- No. of modules (total/per row)
- 72/18
001100271

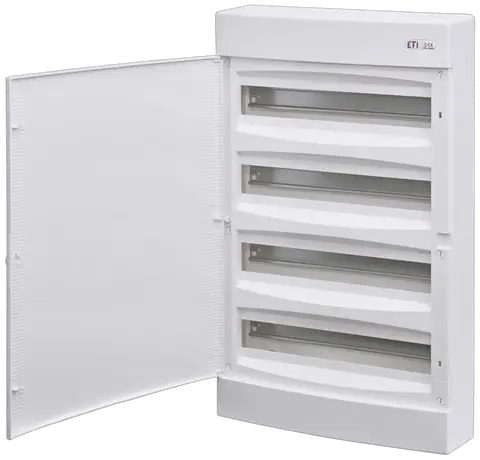

ECT 4x18PO
