003810207

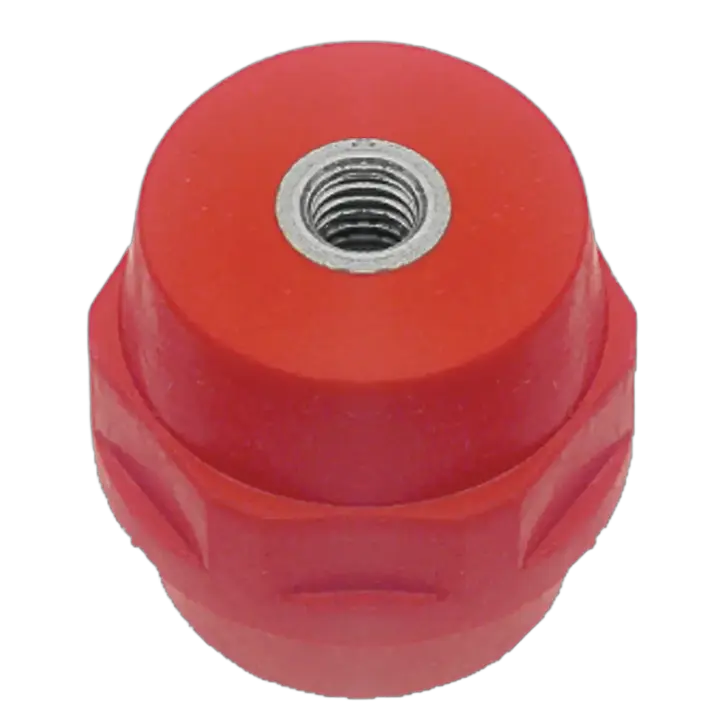

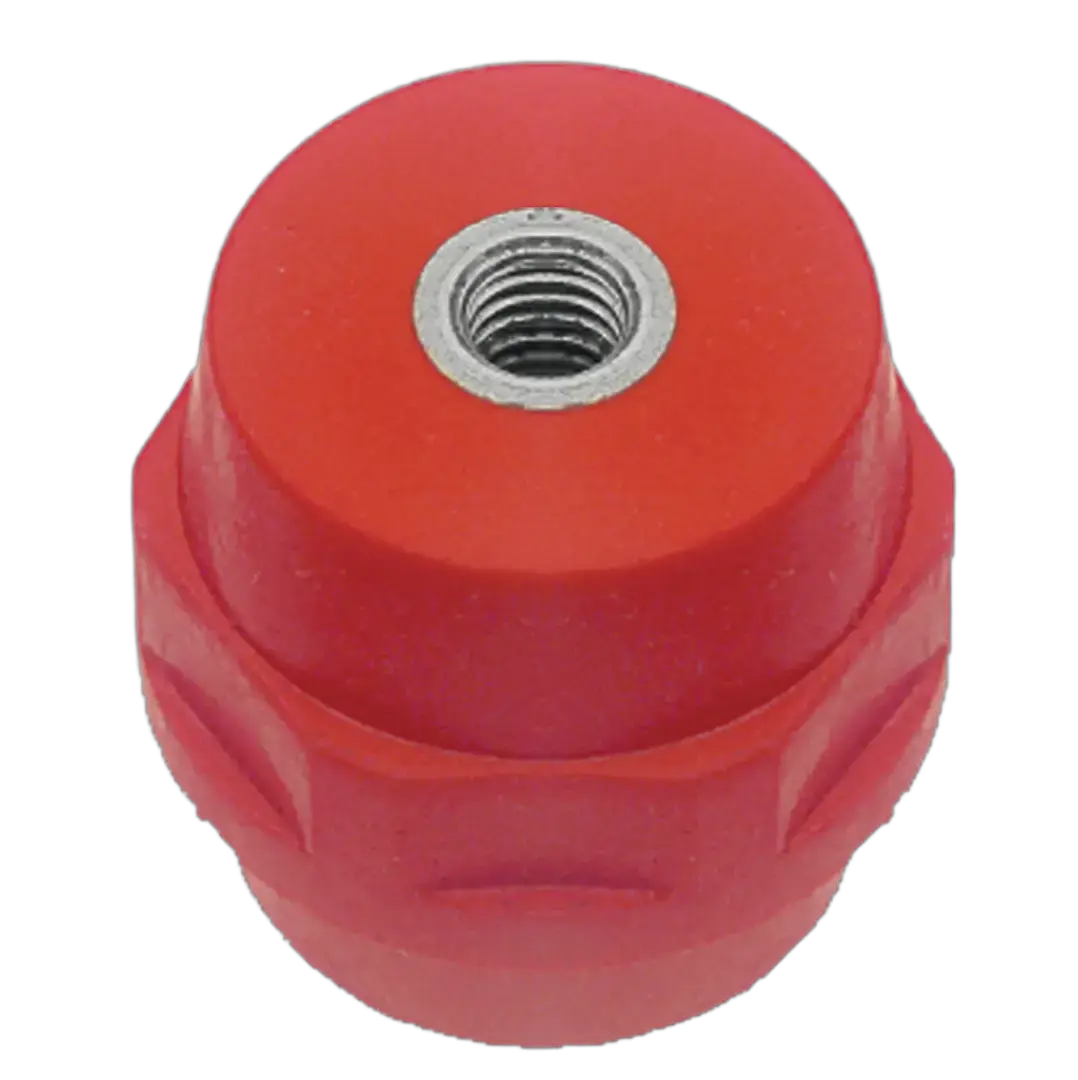

INS 20617 Busbar insulator
- ETI Code:
- 003810207
- Rated DC voltage:
- 400 V
- Rated AC voltage:
- 400 V
- Impulse isolation strenght:
- 15 kV
- Working Temperature:
- -20-120 °C
- Material:
- Polyester BMC
- Flammable class:
- V0
- Height:
- 20 mm
- Width:
- 17 mm
4 Documents
12 Logistics
Product
- EAN code for a single product
- 3838895494935
- Net weight of the product
- 0.027 kg
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 100 pcs
- EAN code for a transport packaging
- 3838895494942
- Transport packaging weight
- 2.7 kg
- Transport Packaging Dimensions Height
- 60 mm
- Transport Packaging Dimensions Width
- 130 mm
- Transport Packaging Dimensions Depth
- 100 mm
- Transport packaging volume
- 0.78 dm³
- Pallet quantity
- 22,200 pcs
- Customs tariff
- 85469010
