002921022

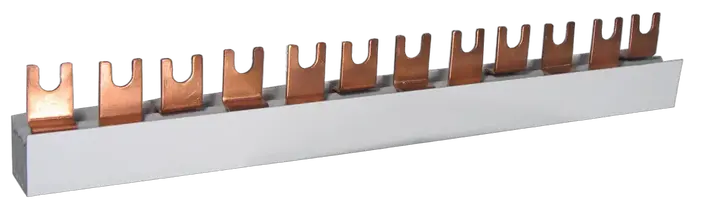

IZ12/3F/18 Insulated busbar
- ETI Code:
- 002921022
- To use with:
- ETIMAT 6, ETITEC, SV, VLD01, ETIMAT P10
- Catalogue Group:
- IZ Section rails
- Type description:
- Fork Type
- Number of poles:
- 3
- Function:
- Section rails
- Busbar type:
- FORK
- Rated current:
- 80 A
- Rated cross section:
- 12 mm²
- Lenght in modules:
- 1x18
- No. Of Phases:
- 3
- Rated AC voltage:
- 500 V
- Rated DC voltage:
- 500 V
- Type accessories:
- Section rails
5 Documents
16 Logistics
Product
- EAN code for a single product
- 5907625307048
- Net weight of the product
- 0.18 kg
- Net width
- 325.4 mm
- Net height
- 37.3 mm
- Net depth
- 26.46 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 20 pcs
- EAN code for a basic packaging
- 5907625307109
- Basic packaging weight
- 3.66 kg
- Basic packaging volume
- 2.9 dm³
Transport Packaging
- Transport packaging quantity
- 120 pcs
- EAN code for a transport packaging
- 5907625307161
- Transport packaging weight
- 22.3 kg
- Transport packaging volume
- 20 dm³
- Pallet quantity
- 4,320 pcs
- Customs tariff
- 85389099
8 ETIM
- Cross section
- 12 mm²
- Number of phases
- 3
- Rated permanent current Iu
- 80 A
- Module width
- 17.8 mm
- Length
- 310 mm
- Max. rated operation voltage Ue
- 500 V
- Insulated
- Yes
- Type of electric connection
- Fork
ETIM Classification – Version 9.0
