001800100

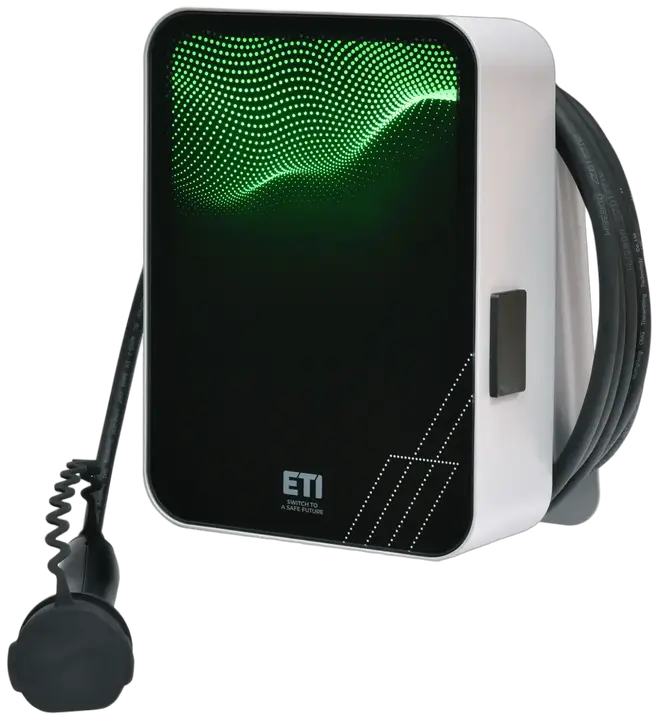

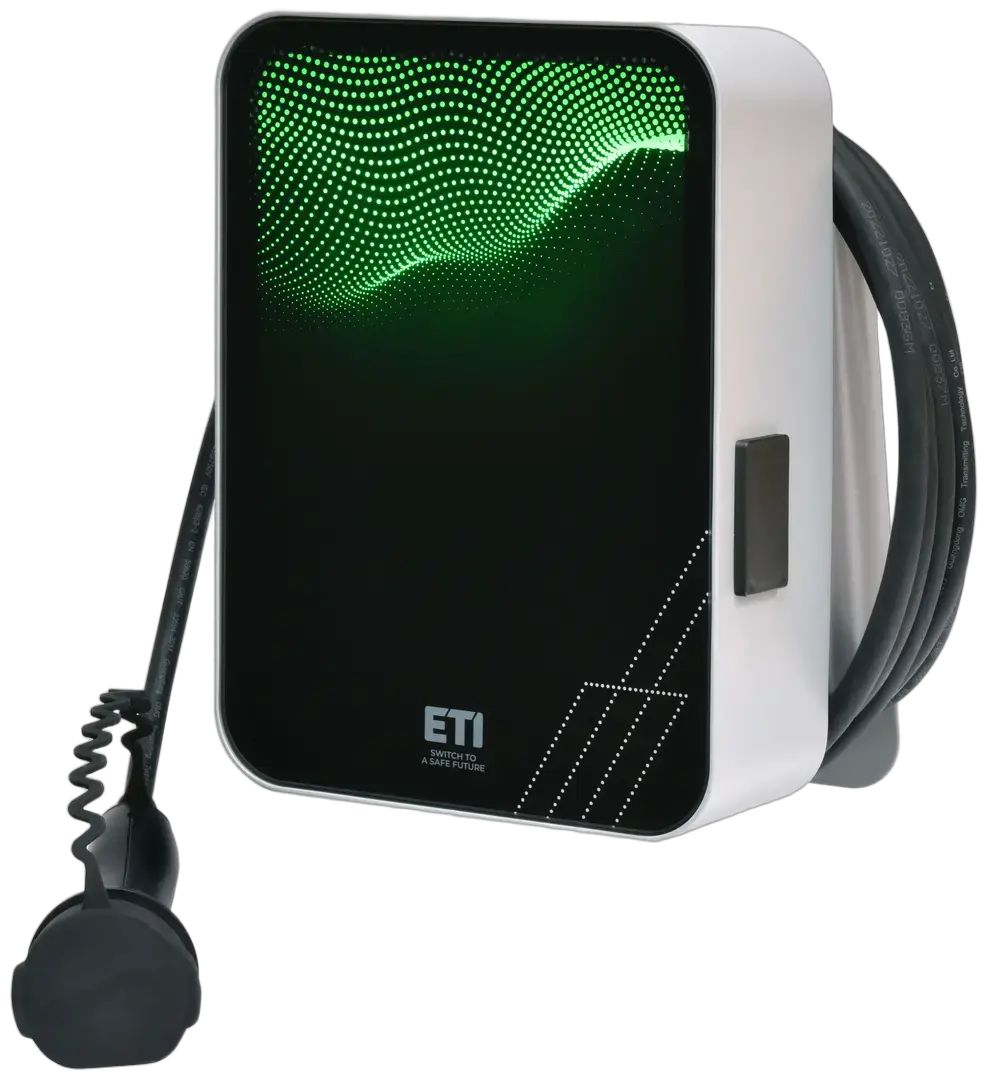

EVC-HOME11 Charging station
- ETI Code:
- 001800100
- Rated power:
- 11 kW
- Charging mode:
- MODE 3
- Connector standard:
- Type 2
- Type: socket/plug:
- 5m cable with plug
- Network system:
- TN/TT/IT (3P+N+PE), TN/TT/IT (1P+N+PE)
- Charger Management:
- Fixed od dynamic with energy counter
- Connectivity:
- RS485 (MODBUS)
- IP rating:
- IP54
12 Logistics
Product
- EAN code for a single product
- 3838400153456
- Net weight of the product
- 9.8 kg
- Net width
- 234.9 mm
- Net height
- 346.7 mm
- Net depth
- 246.23 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838400120557
- Transport packaging weight
- 9.8 kg
- Transport packaging volume
- 29.7 dm³
- Pallet quantity
- 12 pcs
- Customs tariff
- 85437090
12 ETIM
- Width
- 230 mm
- Number of earth leakage circuit breakers type A
- 1
- Degree of protection (IP)
- IP54
- Mounting method
- Wall mounting
- Impact strength
- IK08
- Number of charging units
- 1
- Number of vehicle connectors Type 2
- 1
- Housing material
- Steel
- Depth
- 215 mm
- Max. power per charging point
- 11 kW
- Nominal connection power
- 11 kW
- Height
- 320 mm
ETIM Classification – Version 9.0
0 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
21 Tags
001800100Charging stationEVC-HOME11ETICHARGEETICHARGEETICHARGEETICHARGEETICHARGEETICHARGEInternationaleV charging stations ETICHARGEeV charging stationType: socket/plug: 5m cable with plugConnector standard: Type 2Charging mode: CASE C, MODE 3Connectivity: RS485 (MODBUS)Rated power: 11 kW-11 kWIP rating: IP54Charger Management: Fixed od dynamic with energy counterNetwork system: TN/TT/IT (3P+N+PE), TN/TT/IT (1P+N+PE)Charging station Rated power: 11 kW-11 kW Type: socket/plug: 5m cable with plug Network system: TN/TT/IT (3P+N+PE), TN/TT/IT (1P+N+PE) IP rating: IP54
