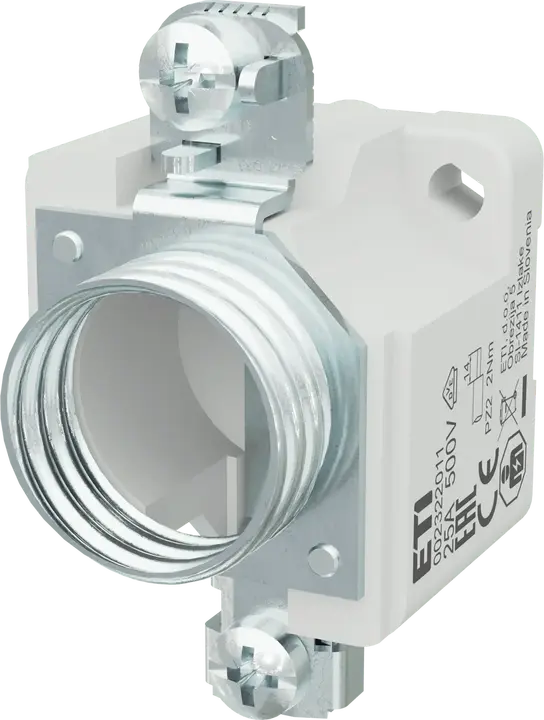

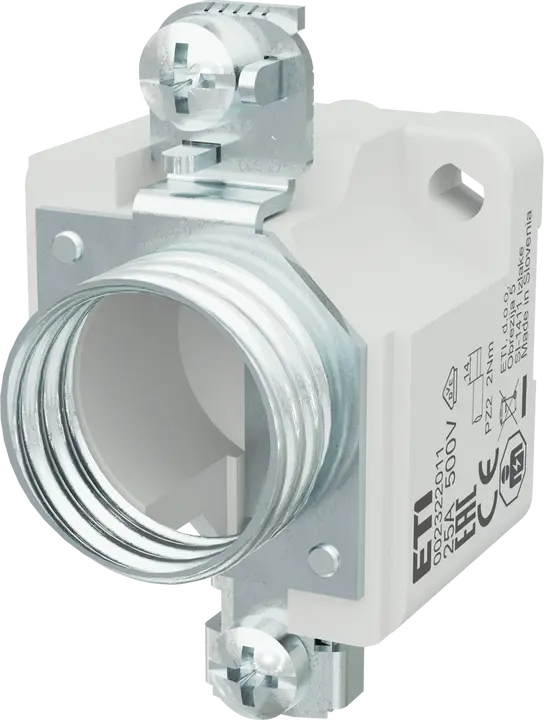

DII E27 25A EZV 1p Fuse - base
- ETI Code:
- 002322011
- To use with:
- D fuse-links
- Rated DC voltage:
- 500 V
- Product group:
- LV-fuse base
- Catalogue Group:
- LV-fuse base
- Standards:
- IEC60269
- Application:
- Residential and industrial installation
- Type description:
- EZV
- Size:
- DII
- Number of poles:
- 1
- Rated current:
- 25 A
- Rated AC voltage:
- 500 V
- Type of Installation:
- Base plate mounting
22 Logistics
Product
- EAN code for a single product
- 3838400029539
- Net weight of the product
- 102 g
- Net width
- 38.4 mm
- Net height
- 69.8 mm
- Net depth
- 46.2 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 15 pcs
- EAN code for a basic packaging
- 3838895002109
- Basic packaging weight
- 1.599 kg
- Basic Packaging Dimensions Height
- 58 mm
- Basic Packaging Dimensions Width
- 200 mm
- Basic Packaging Dimensions Depth
- 200 mm
- Basic packaging volume
- 2.32 dm³
Transport Packaging
- Transport packaging quantity
- 105 pcs
- EAN code for a transport packaging
- 3838895717126
- Transport packaging weight
- 11.992 kg
- Transport Packaging Dimensions Height
- 0.215 m
- Transport Packaging Dimensions Width
- 0.37 m
- Transport Packaging Dimensions Depth
- 0.375 m
- Transport packaging volume
- 0.03 m³
- Pallet quantity
- 3,150 pcs
- Customs tariff
- 85389099
7 ETIM
- Model
- Fitted screw
- Mounting method
- Bottom mounting
- Construction size
- DII
- Number of poles
- 1
- Rated voltage
- 500 V
- Rated current
- 25 A
- Material
- Porcelain
