Fuse bases NV/NH are essential components in low voltage electrical systems, providing a secure and reliable housing for NH fuse links. They serve as the interface between the fuse link and the electrical circuit, ensuring proper connection and protection. Fuse bases are typically designed for surface mounting on mounting plates or DIN rails, allowing for easy installation and integration into distribution boards and panels.

This product is no longer available. Replacement:

PK 3 M12-M12 1p S (004123300)

004122005 Obsolete

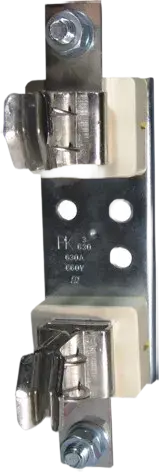

Image of *PK3 M12-M12 1p

*PK3 M12-M12 1p Fuse - base

ETI Code:: 004122005
Size:: NH3
Number of poles:: 1
Rated current:: 630 A
Rated AC voltage:: 690 V
Type of Installation:: Base plate mounting

Accessories

Product

Net weight of the product: 1.3 kg
Stock unit of measure: pcs

Basic Packaging

Basic packaging quantity: 3 pcs
EAN code for a basic packaging: 3838895004332
Basic packaging weight: 3.8 kg
Basic packaging volume: 4.26 dm³

Transport Packaging

Transport packaging quantity: 24 pcs
EAN code for a transport packaging: 3838895161523
Transport packaging weight: 31.19 kg
Transport packaging volume: 48 dm³
Pallet quantity: 480 pcs
Customs tariff: 85389099

Construction size: NH3
Number of poles: 1
Rated current: 630 A

ETIM Classification – Version 9.0

004122005 Fuse - base *PK3 M12-M12 1p NV/NH Fuse bases PK/PKI PK/PKI 1p 1p International Fuse links NH Fuse bases NH AC Size: NH3 Number of poles: 1 Rated AC voltage: 690 V/690 V Type of Installation: Base plate mounting Rated current: 630 A/630 A Fuse - base NVP Number of poles: 1 Size: NH3 Rated current: 630 A/630 A Rated AC voltage: 690 V/690 V
