004941502

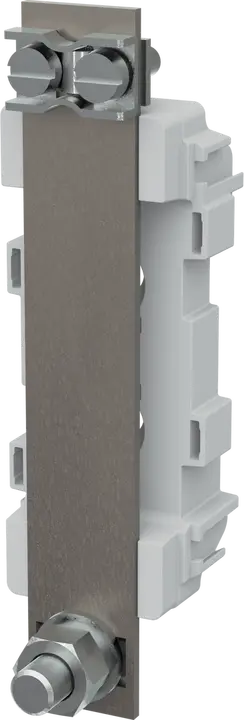

PT 00/0 M8-2M5 Neutral terminal
- ETI Code:
- 004941502
- Type description:
- PT - neutral
- Size:
- NH00
- Number of poles:
- 1
- Rated current:
- 160 A
- Rated AC voltage:
- 690 V
- Type of Installation:
- DIN rail mounting / Screw mounting
5 Documents
22 Logistics
Product
- EAN code for a single product
- 3838400041302
- Net weight of the product
- 0.103 kg
- Net width
- 37 mm
- Net height
- 119.5 mm
- Net depth
- 43.2 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 3 pcs
- EAN code for a basic packaging
- 3838895778943
- Basic packaging weight
- 0.369 kg
- Basic Packaging Dimensions Height
- 0.07 m
- Basic Packaging Dimensions Width
- 0.11 m
- Basic Packaging Dimensions Depth
- 0.135 m
- Basic packaging volume
- 0.001 m³
Transport Packaging
- Transport packaging quantity
- 75 pcs
- EAN code for a transport packaging
- 3838895778950
- Transport packaging weight
- 9.68 kg
- Transport Packaging Dimensions Height
- 0.285 m
- Transport Packaging Dimensions Width
- 0.343 m
- Transport Packaging Dimensions Depth
- 0.363 m
- Transport packaging volume
- 0.035 m³
- Pallet quantity
- 75 pcs
- Customs tariff
- 85389099
5 ETIM
- Mounting method
- Screw-on
- Construction size
- NH00
- Number of poles
- 1
- Connection type
- Screwed terminal
- Rated current
- 160 A
ETIM Classification – Version 9.0
