Photovoltaic fuse links NH 800V a.c. - Products & Solutions

NH00 gG 6A/800V

Class name: Fuse link
Fuse type: NH
Size: NH00
Rated current: 6 A
Time-Current Characteristic: gG
Indicator: Combination fuse status indicator
Rated AC voltage: 800 V
Breaking capacity AC: 120 kA
Power dissipation (0,7xIn): 0.8 W
Power dissipation: 1.9 W
Prearcing joule integral (A2s): 63
Operating joule integral (A2s): 650
Standards: IEC 60269-2
Application: For cable protection on a.c. side of PV inverter

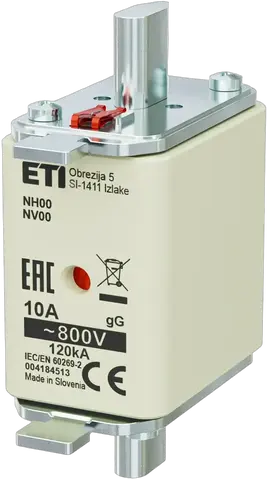

NH00 gG 10A/800V

Class name: Fuse link
Fuse type: NH
Size: NH00
Rated current: 10 A
Time-Current Characteristic: gG
Indicator: Combination fuse status indicator
Rated AC voltage: 800 V
Breaking capacity AC: 120 kA
Power dissipation (0,7xIn): 0.6 W
Power dissipation: 1.3 W
Prearcing joule integral (A2s): 35
Operating joule integral (A2s): 850
Standards: IEC 60269-2
Application: For cable protection on a.c. side of PV inverter

NH00 gG 16A/800V

Class name: Fuse link
Fuse type: NH
Size: NH00
Rated current: 16 A
Time-Current Characteristic: gG
Indicator: Combination fuse status indicator
Rated AC voltage: 800 V
Breaking capacity AC: 120 kA
Power dissipation (0,7xIn): 1.1 W
Power dissipation: 2.4 W
Prearcing joule integral (A2s): 120
Operating joule integral (A2s): 1,800
Standards: IEC 60269-2
Application: For cable protection on a.c. side of PV inverter

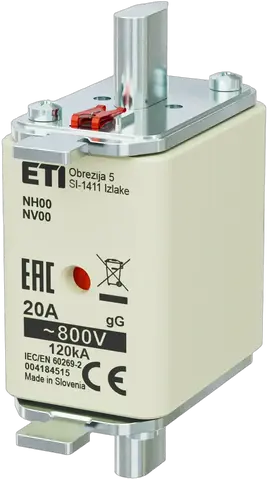

NH00 gG 20A/800V

Class name: Fuse link
Fuse type: NH
Size: NH00
Rated current: 20 A
Time-Current Characteristic: gG
Indicator: Combination fuse status indicator
Rated AC voltage: 800 V
Breaking capacity AC: 120 kA
Power dissipation (0,7xIn): 1.1 W
Power dissipation: 2.6 W
Prearcing joule integral (A2s): 225
Operating joule integral (A2s): 4,000
Standards: IEC 60269-2
Application: For cable protection on a.c. side of PV inverter

NH00 gG 25A/800V

Class name: Fuse link
Fuse type: NH
Size: NH00
Rated current: 25 A
Time-Current Characteristic: gG
Indicator: Combination fuse status indicator
Rated AC voltage: 800 V
Breaking capacity AC: 120 kA
Power dissipation (0,7xIn): 1.2 W
Power dissipation: 2.7 W
Prearcing joule integral (A2s): 300
Operating joule integral (A2s): 6,500
Standards: IEC 60269-2
Application: For cable protection on a.c. side of PV inverter

NH00 gG 35A/800V

Class name: Fuse link
Fuse type: NH
Size: NH00
Rated current: 35 A
Time-Current Characteristic: gG
Indicator: Combination fuse status indicator
Rated AC voltage: 800 V
Breaking capacity AC: 120 kA
Power dissipation (0,7xIn): 1.5 W
Power dissipation: 3.3 W
Prearcing joule integral (A2s): 1,800
Operating joule integral (A2s): 10,000
Standards: IEC 60269-2
Application: For cable protection on a.c. side of PV inverter

NH00 gG 40A/800V

Class name: Fuse link
Fuse type: NH
Size: NH00
Rated current: 40 A
Time-Current Characteristic: gG
Indicator: Combination fuse status indicator
Rated AC voltage: 800 V
Breaking capacity AC: 120 kA
Power dissipation (0,7xIn): 1.8 W
Power dissipation: 4 W
Prearcing joule integral (A2s): 2,100
Operating joule integral (A2s): 13,500
Standards: IEC 60269-2
Application: For cable protection on a.c. side of PV inverter

NH00 gG 50A/800V

Class name: Fuse link
Fuse type: NH
Size: NH00
Rated current: 50 A
Time-Current Characteristic: gG
Indicator: Combination fuse status indicator
Rated AC voltage: 800 V
Breaking capacity AC: 120 kA
Power dissipation (0,7xIn): 2.1 W
Power dissipation: 4.8 W
Prearcing joule integral (A2s): 4,300
Operating joule integral (A2s): 27,000
Standards: IEC 60269-2
Application: For cable protection on a.c. side of PV inverter

NH00 gG 63A/800V

Class name: Fuse link
Fuse type: NH
Size: NH00
Rated current: 63 A
Time-Current Characteristic: gG
Indicator: Combination fuse status indicator
Rated AC voltage: 800 V
Breaking capacity AC: 120 kA
Power dissipation (0,7xIn): 2.6 W
Power dissipation: 6 W
Prearcing joule integral (A2s): 7,000
Operating joule integral (A2s): 43,000
Standards: IEC 60269-2
Application: For cable protection on a.c. side of PV inverter

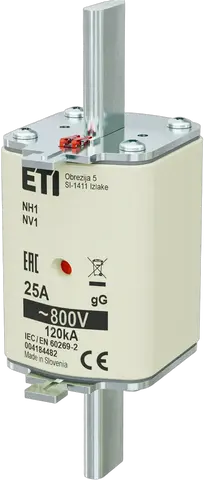

NH1 gG 25A/800V

Class name: Fuse link
Fuse type: NH
Size: NH1
Rated current: 25 A
Time-Current Characteristic: gG
Indicator: Combination fuse status indicator
Rated AC voltage: 800 V
Breaking capacity AC: 120 kA
Power dissipation (0,7xIn): 1.4 W
Power dissipation: 3.2 W
Prearcing joule integral (A2s): 600
Operating joule integral (A2s): 14,000
Standards: IEC 60269-2
Application: For cable protection on a.c. side of PV inverter

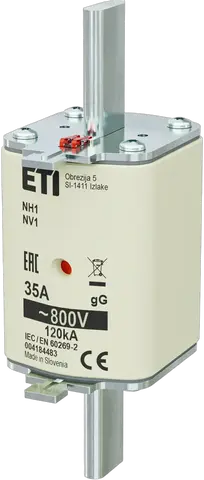

NH1 gG 35A/800V

Class name: Fuse link
Fuse type: NH
Size: NH1
Rated current: 35 A
Time-Current Characteristic: gG
Indicator: Combination fuse status indicator
Rated AC voltage: 800 V
Breaking capacity AC: 120 kA
Power dissipation (0,7xIn): 1.5 W
Power dissipation: 3.4 W
Prearcing joule integral (A2s): 2,400
Operating joule integral (A2s): 35,000
Standards: IEC 60269-2
Application: For cable protection on a.c. side of PV inverter

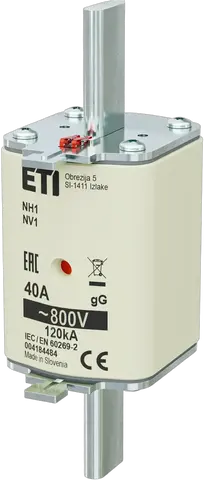

NH1 gG 40A/800V

Class name: Fuse link
Fuse type: NH
Size: NH1
Rated current: 40 A
Time-Current Characteristic: gG
Indicator: Combination fuse status indicator
Rated AC voltage: 800 V
Breaking capacity AC: 120 kA
Power dissipation (0,7xIn): 1.8 W
Power dissipation: 4 W
Prearcing joule integral (A2s): 3,200
Operating joule integral (A2s): 50,000
Standards: IEC 60269-2
Application: For cable protection on a.c. side of PV inverter

NH1 gG 50A/800V

Class name: Fuse link
Fuse type: NH
Size: NH1
Rated current: 50 A
Time-Current Characteristic: gG
Indicator: Combination fuse status indicator
Rated AC voltage: 800 V
Breaking capacity AC: 120 kA
Power dissipation (0,7xIn): 1.9 W
Power dissipation: 4.4 W
Prearcing joule integral (A2s): 3,500
Operating joule integral (A2s): 70,000
Standards: IEC 60269-2
Application: For cable protection on a.c. side of PV inverter

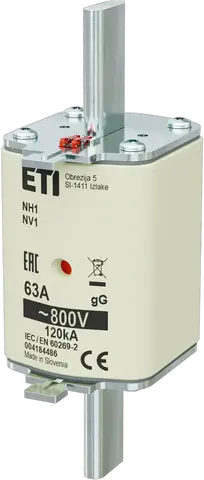

NH1 gG 63A/800V

Class name: Fuse link
Fuse type: NH
Size: NH1
Rated current: 63 A
Time-Current Characteristic: gG
Indicator: Combination fuse status indicator
Rated AC voltage: 800 V
Breaking capacity AC: 120 kA
Power dissipation (0,7xIn): 2.4 W
Power dissipation: 5.5 W
Prearcing joule integral (A2s): 5,500
Operating joule integral (A2s): 120,000
Standards: IEC 60269-2
Application: For cable protection on a.c. side of PV inverter

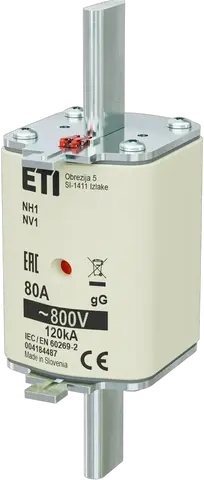

NH1 gG 80A/800V

Class name: Fuse link
Fuse type: NH
Size: NH1
Rated current: 80 A
Time-Current Characteristic: gG
Indicator: Combination fuse status indicator
Rated AC voltage: 800 V
Breaking capacity AC: 120 kA
Power dissipation (0,7xIn): 3 W
Power dissipation: 6.9 W
Prearcing joule integral (A2s): 11,000
Operating joule integral (A2s): 145,000
Standards: IEC 60269-2
Application: For cable protection on a.c. side of PV inverter

NH1 gG 100A/800V

Class name: Fuse link
Fuse type: NH
Size: NH1
Rated current: 100 A
Time-Current Characteristic: gG
Indicator: Combination fuse status indicator
Rated AC voltage: 800 V
Breaking capacity AC: 120 kA
Power dissipation (0,7xIn): 3.8 W
Power dissipation: 8.6 W
Prearcing joule integral (A2s): 18,000
Operating joule integral (A2s): 185,000
Standards: IEC 60269-2
Application: For cable protection on a.c. side of PV inverter

NH1 gG 125A/800V

Class name: Fuse link
Fuse type: NH
Size: NH1
Rated current: 125 A
Time-Current Characteristic: gG
Indicator: Combination fuse status indicator
Rated AC voltage: 800 V
Breaking capacity AC: 120 kA
Power dissipation (0,7xIn): 4.3 W
Power dissipation: 9.7 W
Prearcing joule integral (A2s): 27,000
Operating joule integral (A2s): 260,000
Standards: IEC 60269-2
Application: For cable protection on a.c. side of PV inverter

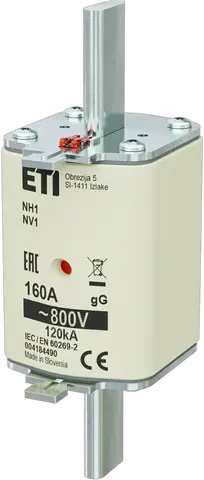

NH1 gG 160A/800V

Class name: Fuse link
Fuse type: NH
Size: NH1
Rated current: 160 A
Time-Current Characteristic: gG
Indicator: Combination fuse status indicator
Rated AC voltage: 800 V
Breaking capacity AC: 120 kA
Power dissipation (0,7xIn): 5.5 W
Power dissipation: 12.4 W
Prearcing joule integral (A2s): 45,000
Operating joule integral (A2s): 475,000
Standards: IEC 60269-2
Application: For cable protection on a.c. side of PV inverter

NH1 gG 200A/800V

Class name: Fuse link
Fuse type: NH
Size: NH1
Rated current: 200 A
Time-Current Characteristic: gG
Indicator: Combination fuse status indicator
Rated AC voltage: 800 V
Breaking capacity AC: 120 kA
Power dissipation (0,7xIn): 8.1 W
Power dissipation: 18.5 W
Prearcing joule integral (A2s): 55,000
Operating joule integral (A2s): 500,000
Standards: IEC 60269-2
Application: For cable protection on a.c. side of PV inverter

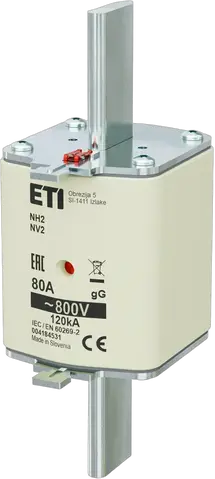

NH2 gG 80A/800V

Class name: Fuse link
Fuse type: NH
Size: NH2
Rated current: 80 A
Time-Current Characteristic: gG
Indicator: Combination fuse status indicator
Rated AC voltage: 800 V
Breaking capacity AC: 120 kA
Power dissipation (0,7xIn): 3.1 W
Power dissipation: 6.9 W
Prearcing joule integral (A2s): 11,000
Operating joule integral (A2s): 145,000
Standards: IEC 60269-2
Application: For cable protection on a.c. side of PV inverter
