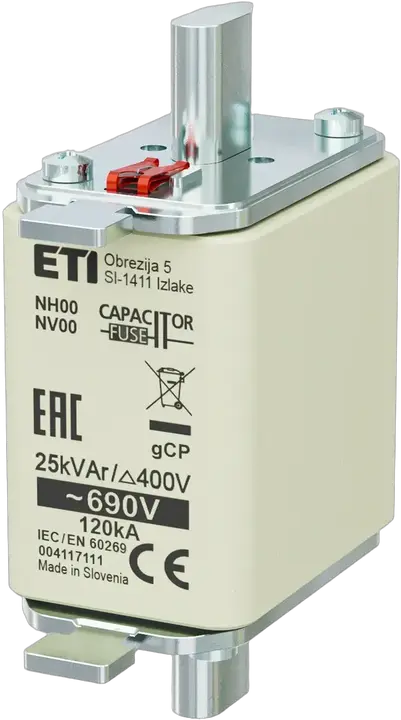

NH00 gCP 25kVAr/690V Fuse link

ETI Code:: 004117111
Fuse type:: NH
Size:: NH00
Time-Current Characteristic:: gCP
Reactive power:: 25 kVAr
Indicator:: Top fuse status indicator
Rated AC voltage:: 690 V
Breaking capacity AC:: 120 kA
Power dissipation:: 5 W
Standards:: IEC 60269
Application:: Special designed fuse according to rated power of 3 phase capacitor at nominal voltage 400V a.c. 50Hz.

Accessories

Product

EAN code for a single product: 3838400063113
Net weight of the product: 170 g
Net width: 29.5 mm
Net height: 78.8 mm
Net depth: 56.2 mm
Stock unit of measure: pcs

Basic Packaging

Basic packaging quantity: 3 pcs
EAN code for a basic packaging: 3838895734703
Basic packaging weight: 0.533 kg
Basic Packaging Dimensions Height: 0.065 m
Basic Packaging Dimensions Width: 0.094 m
Basic Packaging Dimensions Depth: 0.083 m
Basic packaging volume: 0.001 m³

Transport Packaging

Transport packaging quantity: 90 pcs
EAN code for a transport packaging: 3838895734710
Transport packaging weight: 16.352 kg
Transport Packaging Dimensions Height: 0.255 m
Transport Packaging Dimensions Width: 0.295 m
Transport Packaging Dimensions Depth: 0.235 m
Transport packaging volume: 0.018 m³
Pallet quantity: 4,680 pcs
Customs tariff: 85361050

Rated switching capacity AC: 120 kA
Voltage type: AC
Fuse construction type according to IEC 60269: NH00
Rated voltage AC: 690
Power loss at rated current: 5 W
Type of fuse status indicator: Top fuse status indicator
Utilization category: Other

ETIM Classification – Version 9.0
