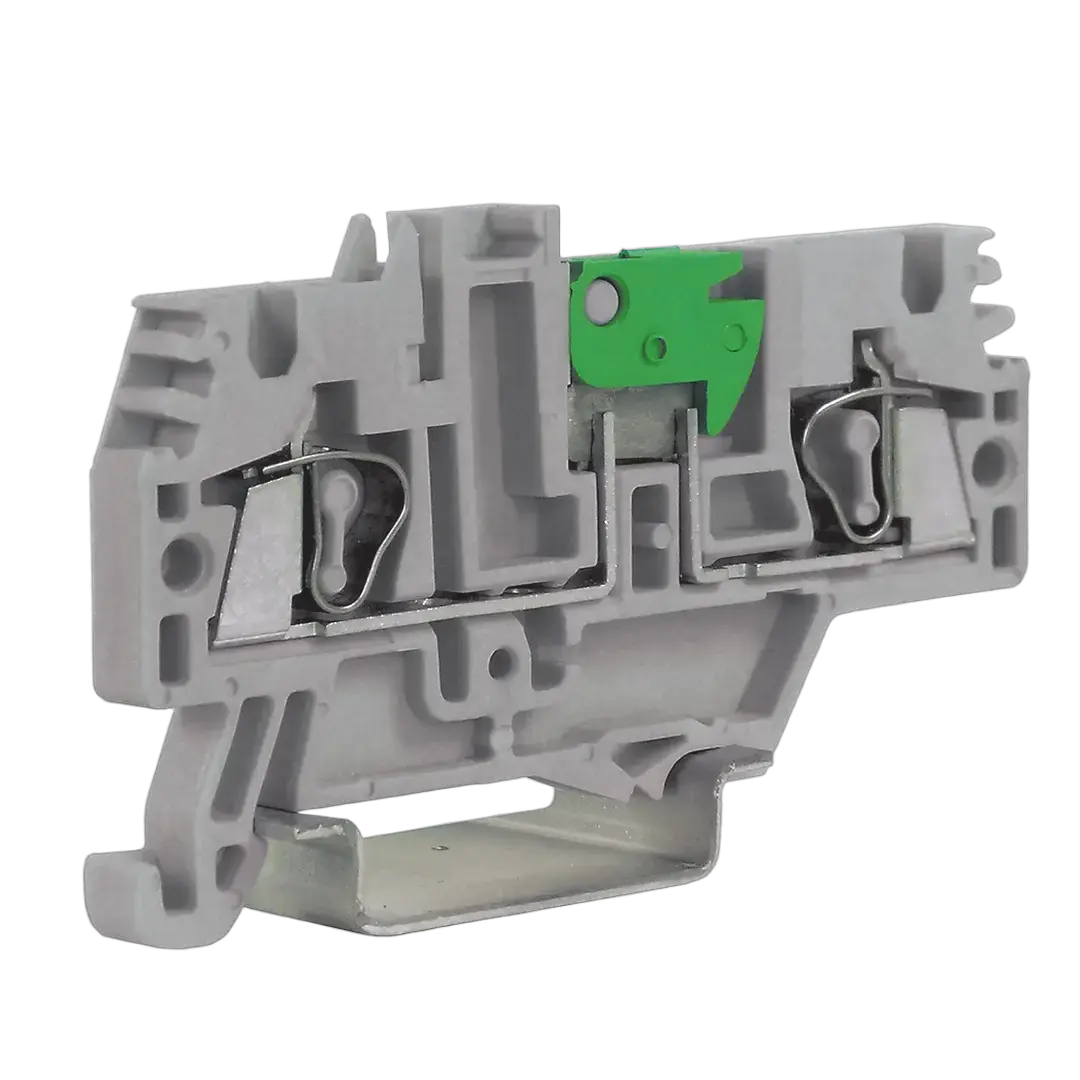

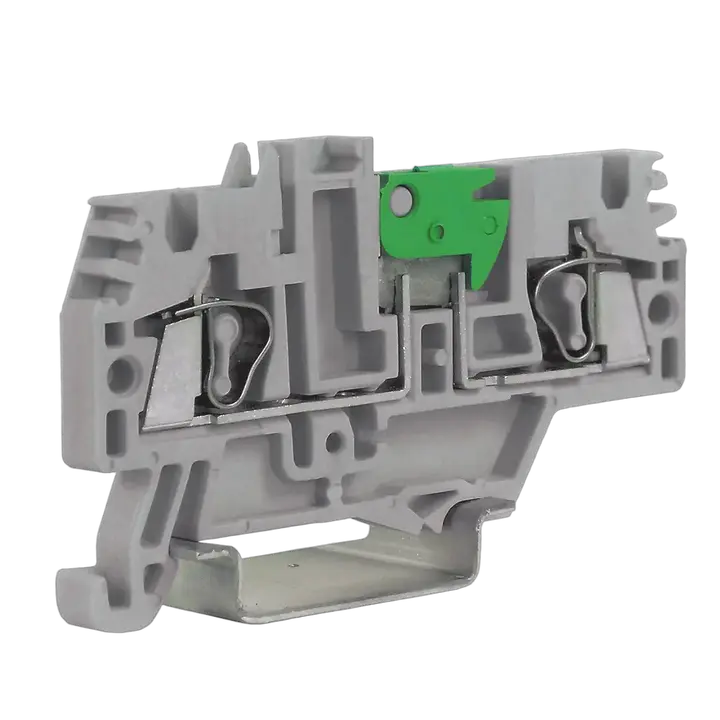

ESP-HMS.2 Separating module

ETI Code:: 003903188
Rated AC voltage:: 400 V
Rated DC voltage:: 400 V
Catalogue Group:: ES Spring Clamp Terminal Blocks
Type of Installation:: TH 35
Type description:: ES Spring Clamp Terminal Blocks
Color:: Grey
Rated cross section:: 2 mm²
Rated impulse withstand voltage Uimp:: 6 kV
Max current with rated cross-section:: 16 mm²
Connectable conductor cross section solid-core:: 2-4 mm²
Cross connection:: Yes
End section needed:: Yes

Accessories

Product

EAN code for a single product: 3838895862611
Net weight of the product: 11 g
Net width: 5.2 mm
Net height: 66 mm
Net depth: 40.5 mm
Stock unit of measure: pcs

Transport Packaging

Transport packaging quantity: 80 pcs
EAN code for a transport packaging: 3838895789826
Transport packaging weight: 0.904 kg
Transport Packaging Dimensions Height: 55 mm
Transport Packaging Dimensions Width: 240 mm
Transport Packaging Dimensions Depth: 150 mm
Transport packaging volume: 1.98 dm³
Pallet quantity: 36,000 pcs
Customs tariff: 85369010

Type of cross disconnection: Swivelling
Width: 5.2 mm
Material insulation body: Thermoplastic
Rated current In: 16 A
Mounting method: DIN rail (top hat rail) 35 mm
Number of levels: 1
Type of electrical connection 1: Spring clamp connection
Type of slitting: Swivelling
Number of clamp positions per level: 2
Closing plate required: Yes
Type of electrical connection 2: Spring clamp connection
Rated voltage: 400 V
Colour: Grey
Height: 37 mm
Inflammability class of insulation material according to with UL94: V0
Connectable conductor cross section solid-core(Min): 0.2 mm²
Connectable conductor cross section multi-wired(Min): 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve(Min): 0.2 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 0.2 mm²
Operating temperature(Min): -40 °C
Connectable conductor cross section solid-core(Max): 4 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 4 mm²
Connectable conductor cross section multi-wired(Max): 4 mm²
Operating temperature(Max): 100 °C
Connectable conductor cross section fine-strand with cable end sleeve(Max): 2.5 mm²
