004648023

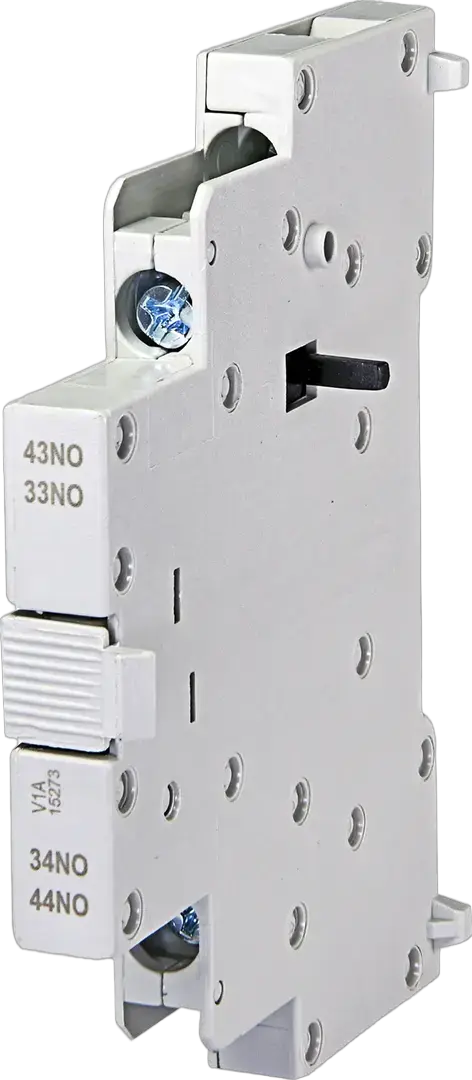

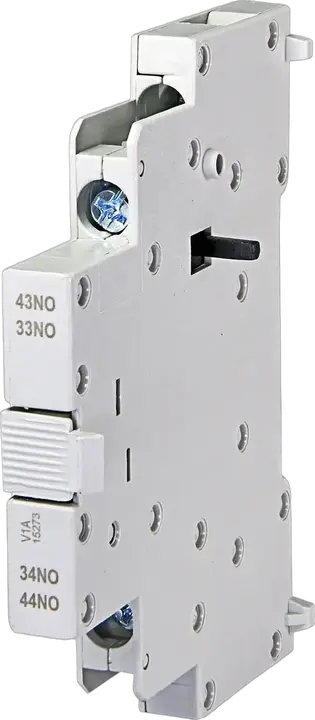

ACBSE-20 Aux.contacts
- ETI Code:
- 004648023
- Catalogue Group:
- Accessories MPE
- Type of Installation:
- Motor protective circuit breaker mounting
- Function accessories:
- Left side mountable contact block
- To use with:
- MPE 25
14 Logistics
Product
- Net weight of the product
- 0.038 kg
- Net width
- 15 mm
- Net height
- 89.5 mm
- Net depth
- 69 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 7890355188408
- Transport packaging weight
- 0.046 kg
- Transport Packaging Dimensions Height
- 66 mm
- Transport Packaging Dimensions Width
- 10 mm
- Transport Packaging Dimensions Depth
- 90 mm
- Transport packaging volume
- 0.059 dm³
- Pallet quantity
- 1,800 pcs
- Customs tariff
- 85365080
4 ETIM
- Mounting method
- Side mounting
- Rated operation current Ie at AC-15, 230 V
- 4 A
- Number of contacts as normally open contact
- 2
- Type of electric connection
- Screw connection
ETIM Classification – Version 9.0
