Rotary switches CLBS 16-125A

Introduction

The Compact Load Break Switch (CLBS) is a series of manually operated, modular, and multipolar load break switches designed for applications ranging from 16A to 125A. These switches are engineered to effectively make and break electrical connections under load conditions, ensuring crucial safety isolation for various low voltage circuits, particularly within machine control systems.

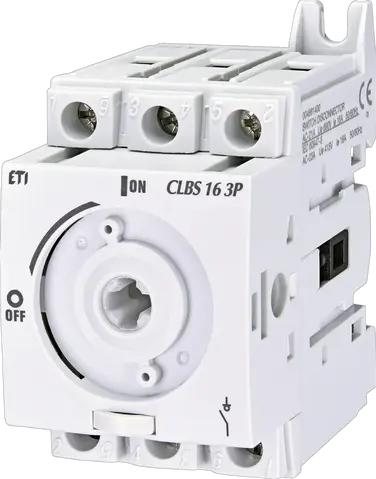

CLBS 16 3P

Class name: Switch disconnector
Function: 0-1
Number of poles: 3
Thermal current Ith: 16 A
Rated operational current Ie AC-21 A/B at 415V: 16 A
Rated Insulation Voltage: 800 V
Max. rated operational voltage (AC): 690 V

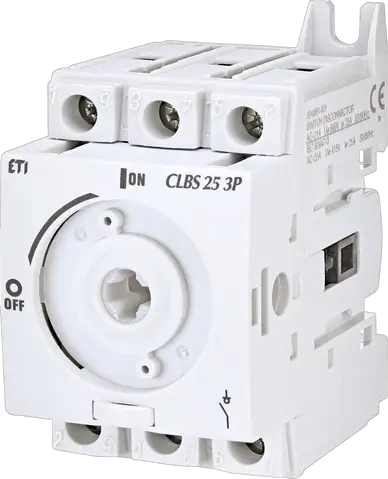

CLBS 25 3P

Class name: Switch disconnector
Function: 0-1
Number of poles: 3
Thermal current Ith: 25 A
Rated operational current Ie AC-21 A/B at 415V: 25 A
Rated Insulation Voltage: 800 V
Max. rated operational voltage (AC): 690 V

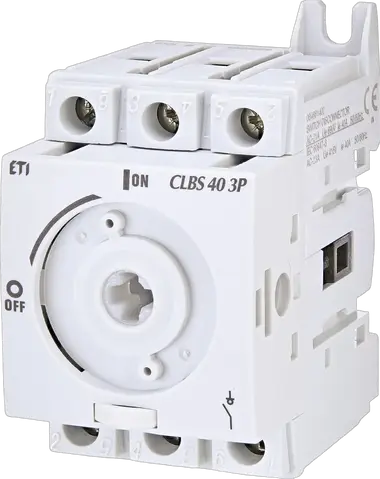

CLBS 40 3P

Class name: Switch disconnector
Function: 0-1
Number of poles: 3
Thermal current Ith: 40 A
Rated operational current Ie AC-21 A/B at 415V: 40 A
Rated Insulation Voltage: 800 V
Max. rated operational voltage (AC): 690 V

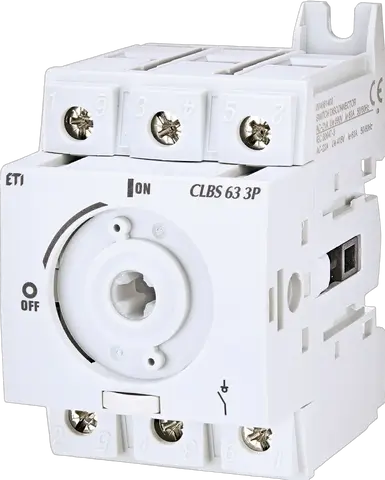

CLBS 63 3P

Class name: Switch disconnector
Function: 0-1
Number of poles: 3
Thermal current Ith: 63 A
Rated operational current Ie AC-21 A/B at 415V: 63 A
Rated Insulation Voltage: 800 V
Max. rated operational voltage (AC): 690 V

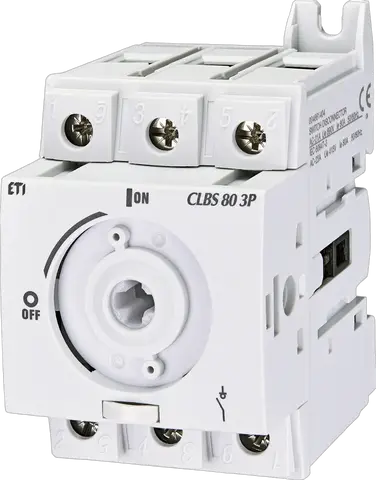

CLBS 80 3P

Class name: Switch disconnector
Function: 0-1
Number of poles: 3
Thermal current Ith: 80 A
Rated operational current Ie AC-21 A/B at 415V: 80 A
Rated Insulation Voltage: 800 V
Max. rated operational voltage (AC): 690 V

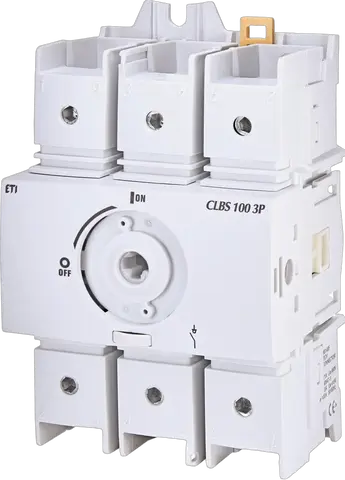

CLBS 100 3P

Class name: Switch disconnector
Function: 0-1
Number of poles: 3
Thermal current Ith: 100 A
Rated operational current Ie AC-21 A/B at 415V: 100 A
Rated Insulation Voltage: 800 V
Max. rated operational voltage (AC): 690 V

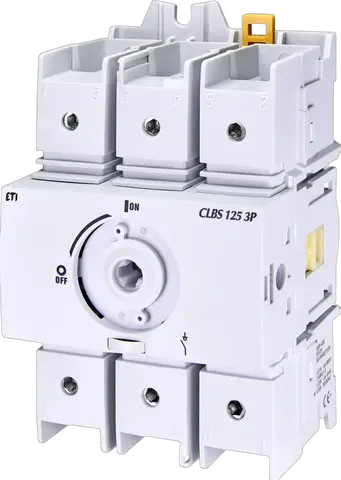

CLBS 125 3P

Class name: Switch disconnector
Function: 0-1
Number of poles: 3
Thermal current Ith: 125 A
Rated operational current Ie AC-21 A/B at 415V: 125 A
Rated Insulation Voltage: 800 V
Max. rated operational voltage (AC): 690 V

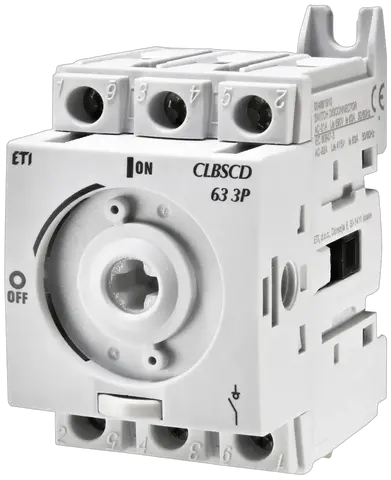

CLBSCD 63 3P

Class name: Switch disconnector
Function: 0-1
Number of poles: 3

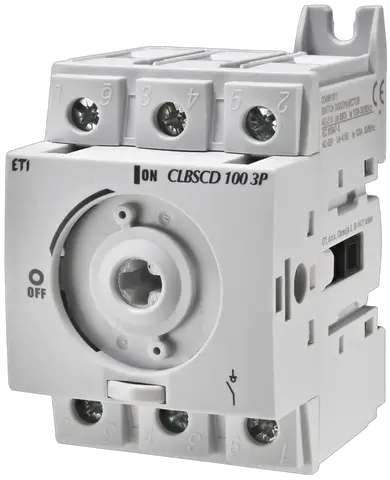

CLBSCD 100 3P

Class name: Switch disconnector
Function: 0-1
Number of poles: 3

ModLBS 16 1p

Class name: Switch disconnector
Function: 0-1
Number of poles: 1
Thermal current Ith: 16 A
Rated operational current Ie AC-21 A/B at 415V: 16 A
Rated Insulation Voltage: 690 V
Max. rated operational voltage (AC): 690 V

ModLBS 16 3p

Class name: Switch disconnector
Function: 0-1
Number of poles: 3
Thermal current Ith: 16 A
Rated operational current Ie AC-21 A/B at 415V: 16 A
Rated Insulation Voltage: 690 V
Max. rated operational voltage (AC): 690 V

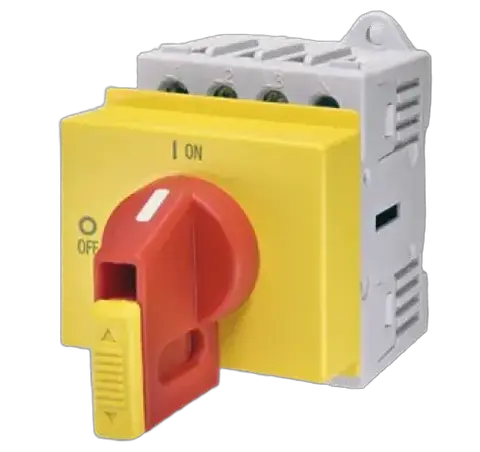

ModLBS 40 3p ES

Class name: Switch disconnector
Function: 0-1 Main switch (yellow/red)
Number of poles: 3
Thermal current Ith: 40 A
Rated operational current Ie AC-21 A/B at 415V: 40 A
Rated Insulation Voltage: 690 V
Max. rated operational voltage (AC): 690 V
