004650140

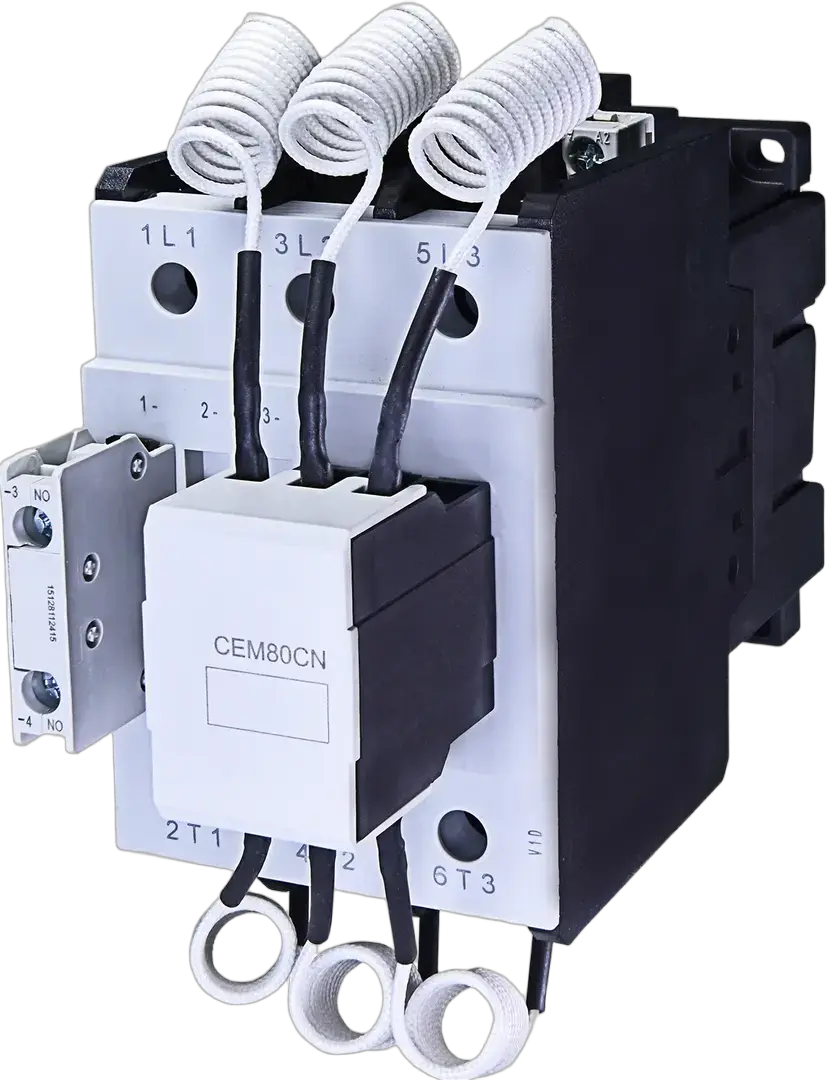

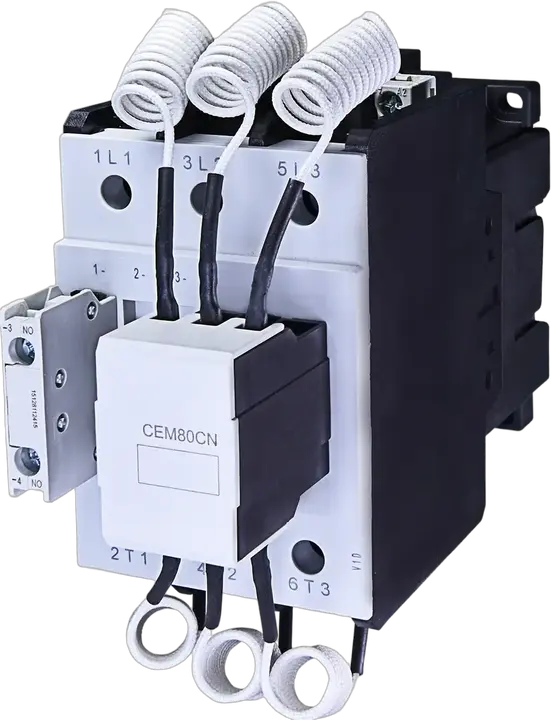

CEM80CN.10-230V-50Hz Capacitive duty contactor
- ETI Code:
- 004650140
- Reactive power:
- 61 kVAr
- Catalogue Group:
- CEM CN
- No. of aux NO contacts:
- 1
- Rated oper. Power 400V:
- 61 kVAr
5 Documents
14 Logistics
Product
- Net weight of the product
- 1.605 kg
- Net width
- 75.4 mm
- Net height
- 185.3 mm
- Net depth
- 167.2 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 7909158959785
- Transport packaging weight
- 1.605 kg
- Transport Packaging Dimensions Height
- 94 mm
- Transport Packaging Dimensions Width
- 202 mm
- Transport Packaging Dimensions Depth
- 203 mm
- Transport packaging volume
- 3.855 dm³
- Pallet quantity
- 500 pcs
- Customs tariff
- 85364900
8 ETIM
- Rated operation current Ie at AC-3, 400 V
- 80 A
- Number of auxiliary contacts as normally open contact
- 1
- Rated operation power at AC-3, 400 V
- 37 kW
- Rated operation current Ie at AC-1, 400 V
- 110 A
- Rated control supply voltage AC 60 Hz(Min)
- 230 V
- Rated control supply voltage AC 50 Hz(Min)
- 415 V
- Rated control supply voltage AC 60 Hz(Max)
- 230 V
- Rated control supply voltage AC 50 Hz(Max)
- 415 V
ETIM Classification – Version 9.0
