004656851

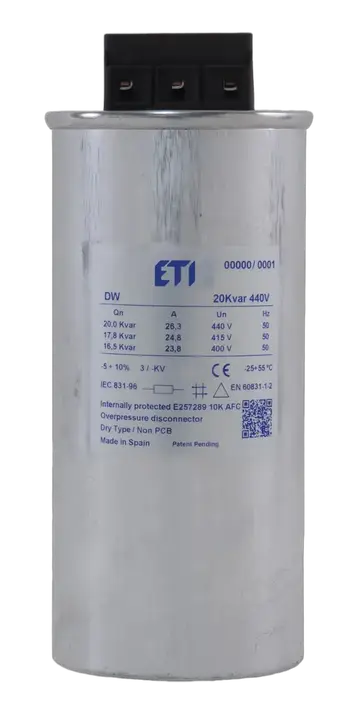

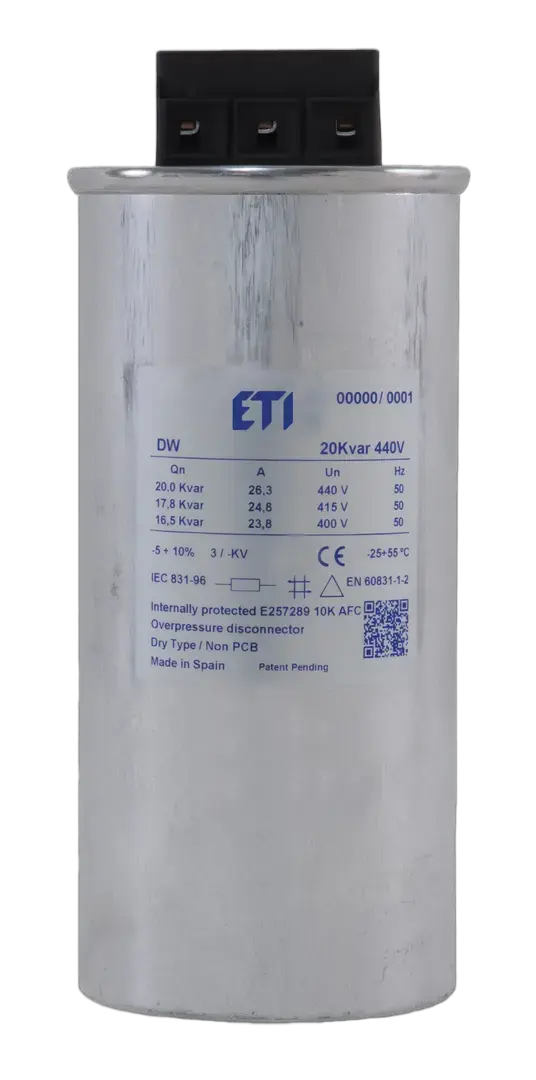

LPC-DW 10 kVAr, 400V, 50HZ Capacitor
- ETI Code:
- 004656851
- Rated DC voltage:
- 400 V
- Catalogue Group:
- LPC-DW
- Reactive power:
- 10 kVAr
- Rated AC voltage:
- 400 V
- Rated capacitance:
- 3x66.31
- Rated current:
- 14.43 A
- Connection type:
- Screw terminal
- Type description:
- Dry
14 Logistics
Product
- Net weight of the product
- 1.5 kg
- Net width
- 135.6 mm
- Net height
- 267.4 mm
- Net depth
- 135.48 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838895822585
- Transport packaging weight
- 1.62 kg
- Transport Packaging Dimensions Height
- 270 mm
- Transport Packaging Dimensions Width
- 95 mm
- Transport Packaging Dimensions Depth
- 95 mm
- Transport packaging volume
- 2.437 dm³
- Pallet quantity
- 411 pcs
- Customs tariff
- 85321000
