002440862

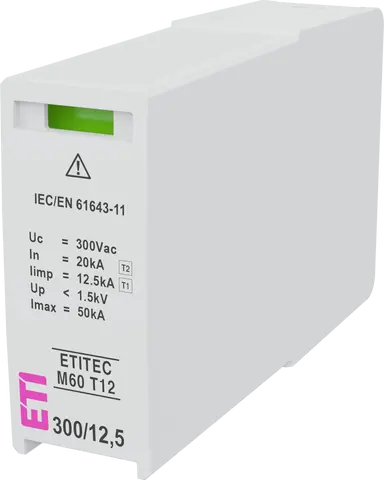

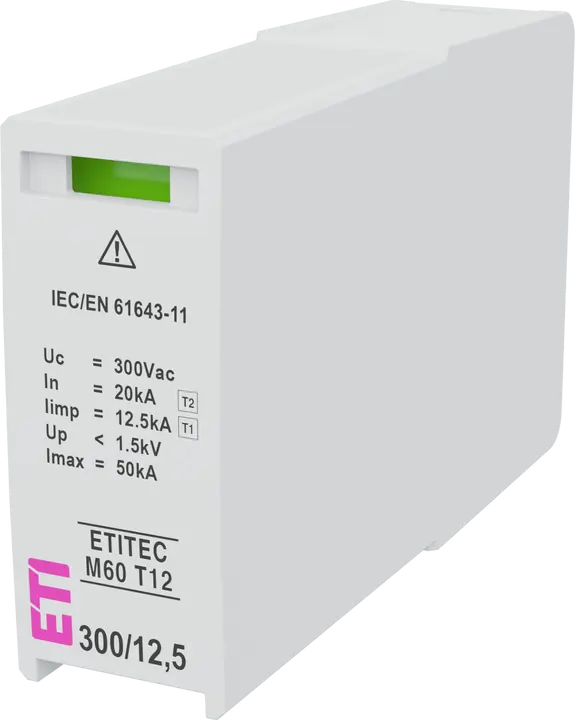

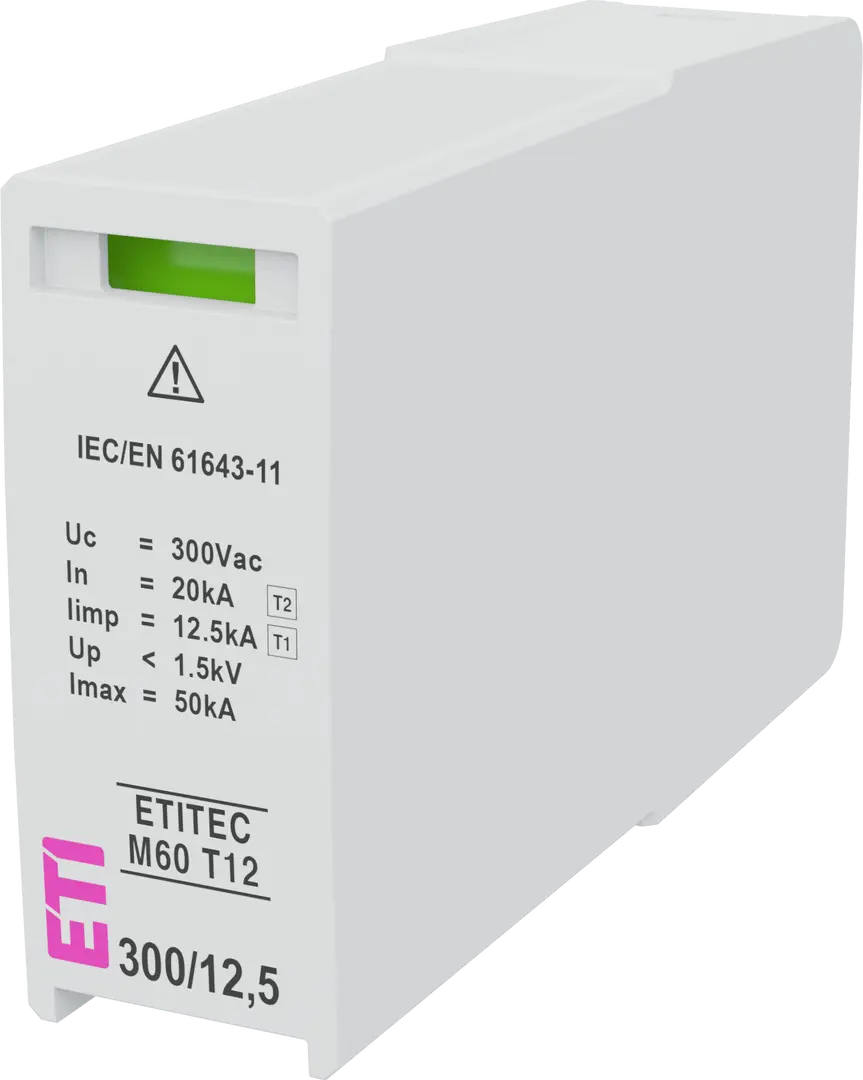

MOD.ETITEC M60 T12 300/12,5 Surge arrester
- ETI Code:
- 002440862
- Rated AC voltage:
- 230 V
- Network system:
- TN/TT
- Catalogue Group:
- ETITEC M60
- Installation:
- Industrial building protection
- IP rating:
- IP20
- Leakage Current:
- Yes
- Applied Technology:
- MOV
- Built-in depth:
- 735 mm
- Surge arrester type:
- T1, T2
- Uc Continous Operating Voltage AC:
- 300 V
- Function:
- SPD Module
- To use with:
- ETITEC M60 T12
- Current type:
- AC
- Iimp(10/350) Impulse Current:
- 12.5 kA
- Nominal Discharge Current (8/20 μs) In:
- 20 kA
4 Documents
18 Logistics
Product
- Net weight of the product
- 0.104 kg
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838400113962
- Basic packaging weight
- 0.112 kg
- Basic Packaging Dimensions Height
- 99 mm
- Basic Packaging Dimensions Width
- 24 mm
- Basic Packaging Dimensions Depth
- 50 mm
- Basic packaging volume
- 0.119 dm³
Transport Packaging
- Transport packaging quantity
- 28 pcs
- EAN code for a transport packaging
- 3838400113979
- Transport packaging weight
- 3.189 kg
- Transport Packaging Dimensions Height
- 83 mm
- Transport Packaging Dimensions Width
- 305 mm
- Transport Packaging Dimensions Depth
- 116 mm
- Transport packaging volume
- 2.937 dm³
- Pallet quantity
- 6,132 pcs
- Customs tariff
- 85363090
15 ETIM
- System configuration TN-C
- Yes
- Nominal voltage AC
- 230 V
- Test class
- Type 1 + 2
- Degree of protection (IP)
- IP20
- Mounting method
- On basic element
- Construction size
- 1 modular spacing
- Lightning impulse current (10/350 µs)
- 12.5 kA
- Specific energy (W/R)
- 39 kJ/Ohm
- System configuration TN-S
- Yes
- Voltage protection level
- 1.5 kV
- System configuration TN
- Yes
- Number of poles
- 1
- System configuration TT
- Yes
- Signalling at the device
- Optical
- Max. continuous voltage AC
- 300 V
ETIM Classification – Version 9.0
