004661872

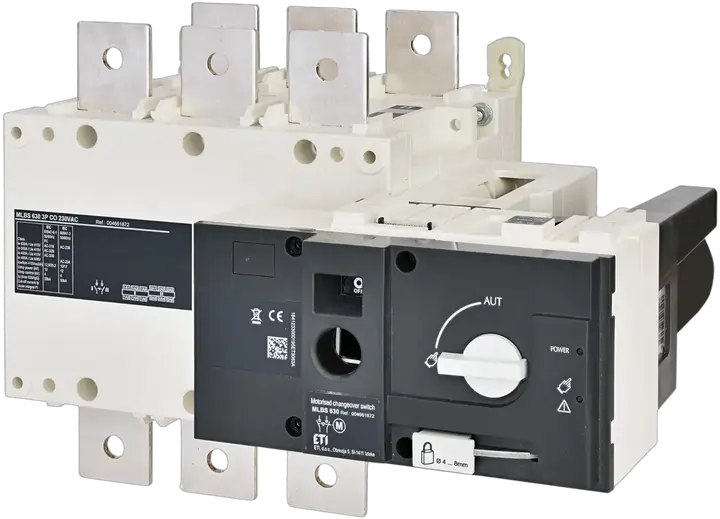

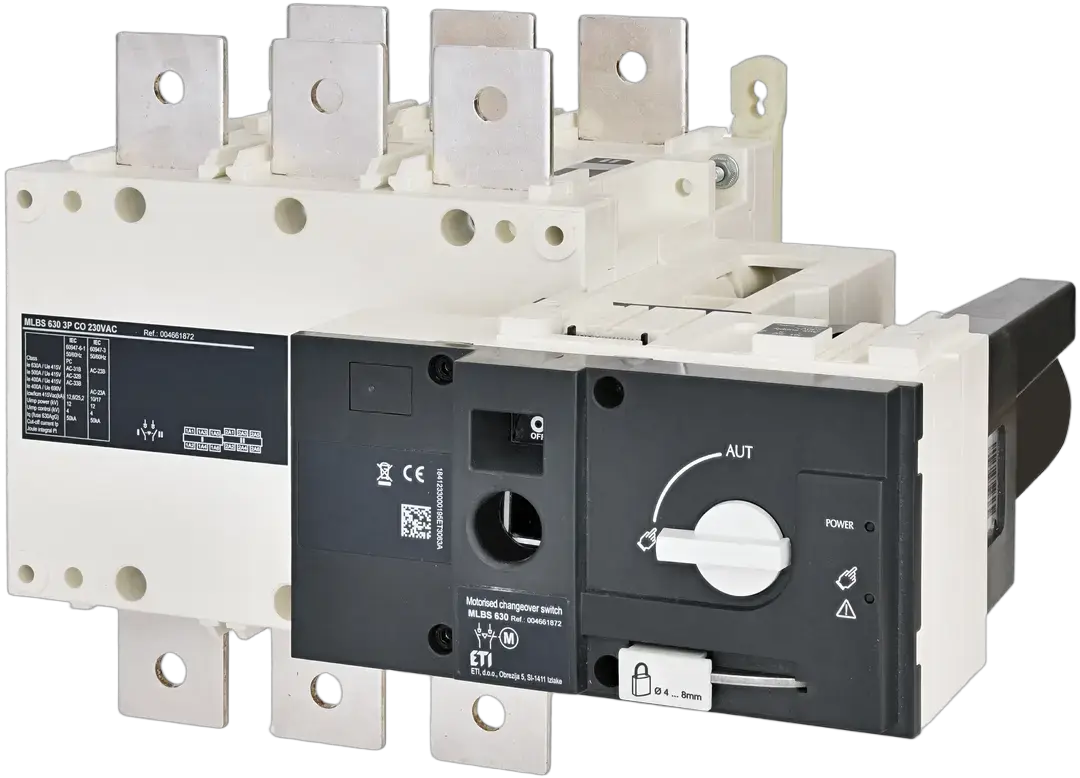

MLBS 630 3P CO 230VAC Changeover switch motor op.
- ETI Code:
- 004661872
- Rated current:
- 630 A
- Type of Installation:
- Base plate mounting
- Type description:
- 230 VAC
- Number of poles:
- 3
- Thermal current Ith:
- 630 A
- Rated operational current Ie AC-21 A/B at 415V:
- 630 A
- Rated Insulation Voltage:
- 1,000 V
- Max. rated operational voltage (AC):
- 690 V
- Control voltage:
- 230VAC
- Catalogue Group:
- Motorised Change Over Load Break Switch MLBS..CO
14 Logistics
Product
- Net weight of the product
- 15.56 kg
- Net width
- 381.8 mm
- Net height
- 260 mm
- Net depth
- 341.45 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838895823940
- Transport packaging weight
- 15.56 kg
- Transport Packaging Dimensions Height
- 360 mm
- Transport Packaging Dimensions Width
- 425 mm
- Transport Packaging Dimensions Depth
- 530 mm
- Transport packaging volume
- 81.09 dm³
- Pallet quantity
- 12 pcs
- Customs tariff
- 85365080
