004661993

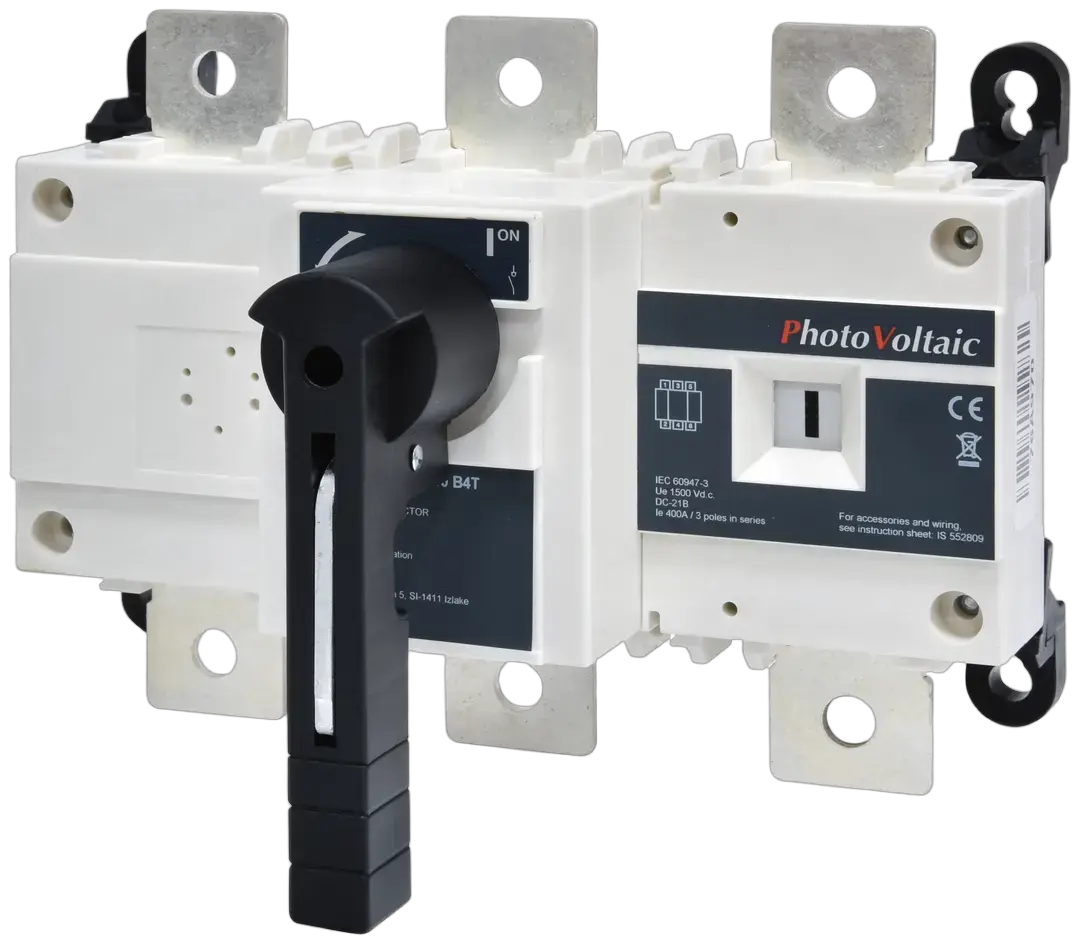

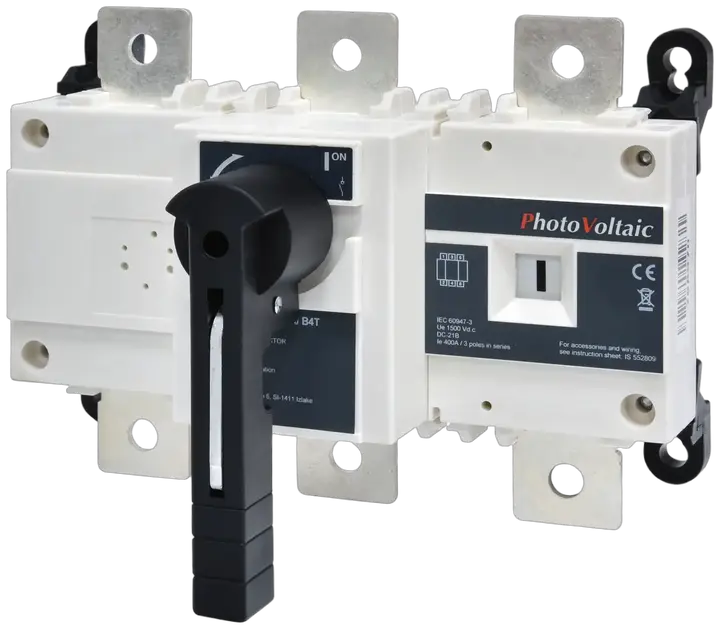

LBS 400 3P DC1500 B4T Switch disconnector PV
- ETI Code:
- 004661993
- Function:
- PV Switch disconnectors, 0-1
- Number of poles:
- 3
- Max. rated operational voltage Ur:
- 1,500 V
- Thermal current Ith:
- 400 A
- Rated operational current Ie DC-21 B at 1000V DC:
- 400 A
18 Logistics
Product
- Net weight of the product
- 2.39 kg
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838400120236
- Basic packaging weight
- 2.39 kg
- Basic Packaging Dimensions Height
- 155 mm
- Basic Packaging Dimensions Width
- 240 mm
- Basic Packaging Dimensions Depth
- 185 mm
- Basic packaging volume
- 6.882 dm³
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838400120229
- Transport packaging weight
- 76.5 kg
- Transport Packaging Dimensions Height
- 1,200 mm
- Transport Packaging Dimensions Width
- 800 mm
- Transport Packaging Dimensions Depth
- 1,400 mm
- Transport packaging volume
- 1,344 dm³
- Pallet quantity
- 150 pcs
- Customs tariff
- 85365080
