NH fuse-switch disconnectors and fuse bases
Items:
0
001690915
KVL-B-000 3p F50 Bottom
- Class name:
- Fuse switch disconnector
- Rated short-time withstand current Icw at 1s (kA):
- 5
- Altitude (m):
- ≤ 2000
- Clamping cross-section (mm²):
- 1,5 ... 50
001690916
KVL-B-000 3p F50 Top
- Class name:
- Fuse switch disconnector
- Rated short-time withstand current Icw at 1s (kA):
- 5
- Altitude (m):
- ≤ 2000
- Clamping cross-section (mm²):
- 1,5 ... 50
001690910
KVL-B-00 3p M8-M8
- Class name:
- Fuse switch disconnector
- Rated short-time withstand current Icw at 1s (kA):
- 5
- Altitude (m):
- ≤ 2000
001690911
KVL-B-00 3p BC95-BC95
- Class name:
- Fuse switch disconnector
- Rated short-time withstand current Icw at 1s (kA):
- 5
- Altitude (m):
- ≤ 2000
- Clamping cross-section (mm²):
- 1,5 ... 90
001690912
KVL-B-1 3p M10-M10
- Class name:
- Fuse switch disconnector
- Rated short-time withstand current Icw at 1s (kA):
- 8,6
- Altitude (m):
- ≤ 2000
001690913
KVL-B-2 3p M10-M10
- Class name:
- Fuse switch disconnector
- Rated short-time withstand current Icw at 1s (kA):
- 15
- Altitude (m):
- ≤ 2000
001690914
KVL-B-3 3p M10-M10
- Class name:
- Fuse switch disconnector
- Rated short-time withstand current Icw at 1s (kA):
- 15
- Altitude (m):
- ≤ 2000
001690920
KVL-B/FT-00 3p M8-M8
- Class name:
- Fuse switch disconnector
- Rated short-time withstand current Icw at 1s (kA):
- 5
- Altitude (m):
- ≤ 2000
001690922
KVL-B/FT-1 3p M10-M10
- Class name:
- Fuse switch disconnector
- Rated short-time withstand current Icw at 1s (kA):
- 8,6
- Altitude (m):
- ≤ 2000
001690923
KVL-B/FT-2 3p M10-M10 TOP
- Class name:
- Fuse switch disconnector
- Rated short-time withstand current Icw at 1s (kA):
- 15
- Altitude (m):
- ≤ 2000
001690924
KVL-B/FT-2 3p M10-M10 BOTTOM
- Class name:
- Fuse switch disconnector
- Rated short-time withstand current Icw at 1s (kA):
- 15
- Altitude (m):
- ≤ 2000
001690926
KVL-B/FT-3 3p M10-M10
- Class name:
- Fuse switch disconnector
- Rated short-time withstand current Icw at 1s (kA):
- 15
- Altitude (m):
- ≤ 2000
001690930

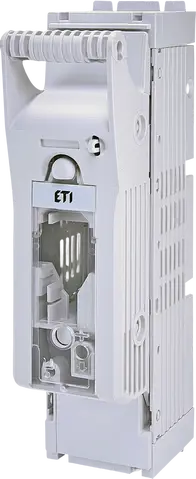

KVL-B/SF-00 1p M8-M8
- Class name:
- Fuse switch disconnector
- Rated short-time withstand current Icw at 1s (kA):
- 5
- Altitude (m):
- ≤ 2000
001690931

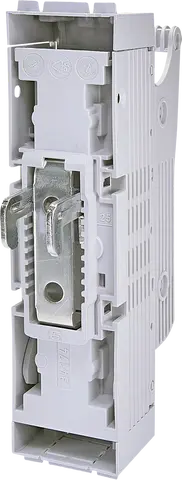

KVL-B/CF-00 1p M8-M8
- Class name:
- Fuse switch disconnector
- Rated short-time withstand current Icw at 1s (kA):
- 5
- Altitude (m):
- ≤ 2000
001690932
KVL-B/SF-1 1p M10-M10
- Class name:
- Fuse switch disconnector
- Rated short-time withstand current Icw at 1s (kA):
- 8,6
- Altitude (m):
- ≤ 2000
001690933
KVL-B/SF-3 1p M10-M10
- Class name:
- Fuse switch disconnector
- Rated short-time withstand current Icw at 1s (kA):
- 15
- Altitude (m):
- ≤ 2000
001691071
PRS KVL-000 3p TOP
- Class name:
- Protection cover
001691072

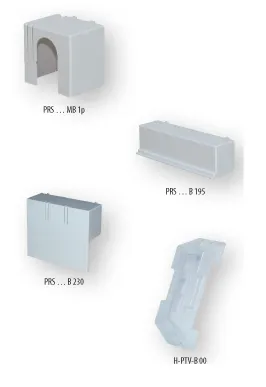

PRS KVL-000 3p BOTTOM
- Class name:
- Protection cover
001691073
UGS KVL-000 3p/34-39
- Class name:
- Protection cover
001691074
BLAL KVL-000 lateral
- Class name:
- Cover support
