Aux.contacts RH 11 002461101

Specifications

ETI Code:
002461101
Description:
RH 11
Class name:
Aux.contacts
Function accessories:
Auxiliary contactor block for contactors R25, R40, R63 AC
Number of NC contacts:
1

Documents

Product

Net weight of the product
0.1  kg
Customs tariff
85365080
logis_net_width
15  mm
logis_net_height
87  mm
logis_net_depth
65  mm

Transport packaging

Transport packaging quantity
1
EAN code for a transport packaging
3838400074652
Transport packaging weight
0.009  kg
Pallet quantity
2808
Classification
EC001286
Class name
Auxiliary device for distribution board devices
Device fitting
Auxiliary switch / relay
Additional equipment
Auxiliary switch
Assembly width (in number of modular spacings)
1
Number of contacts as normally closed contact
1
Number of contacts as change-over contact
1
Rated switch current
3A
Rated voltage
230V
Voltage type for actuating
AC
With auto test for earth leakage function
No
Suitable for max. number of poles main contact unit (total)
4
Suitable for max. current main contact unit
63A
ETIM Classification – Version 7.0

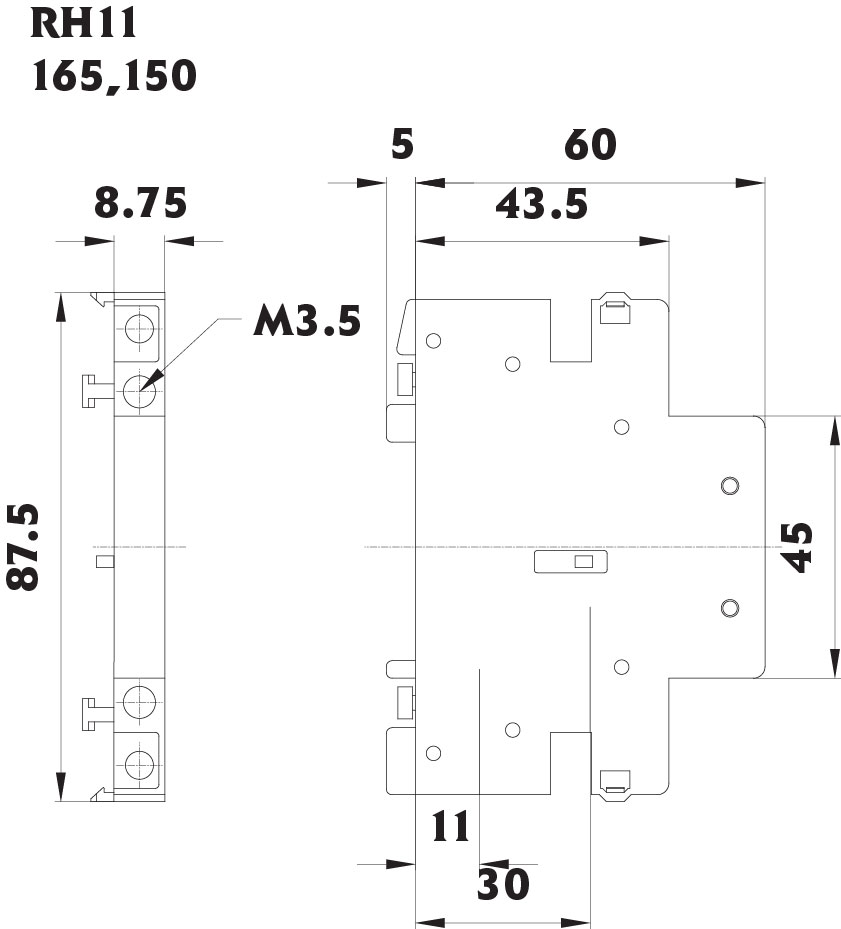

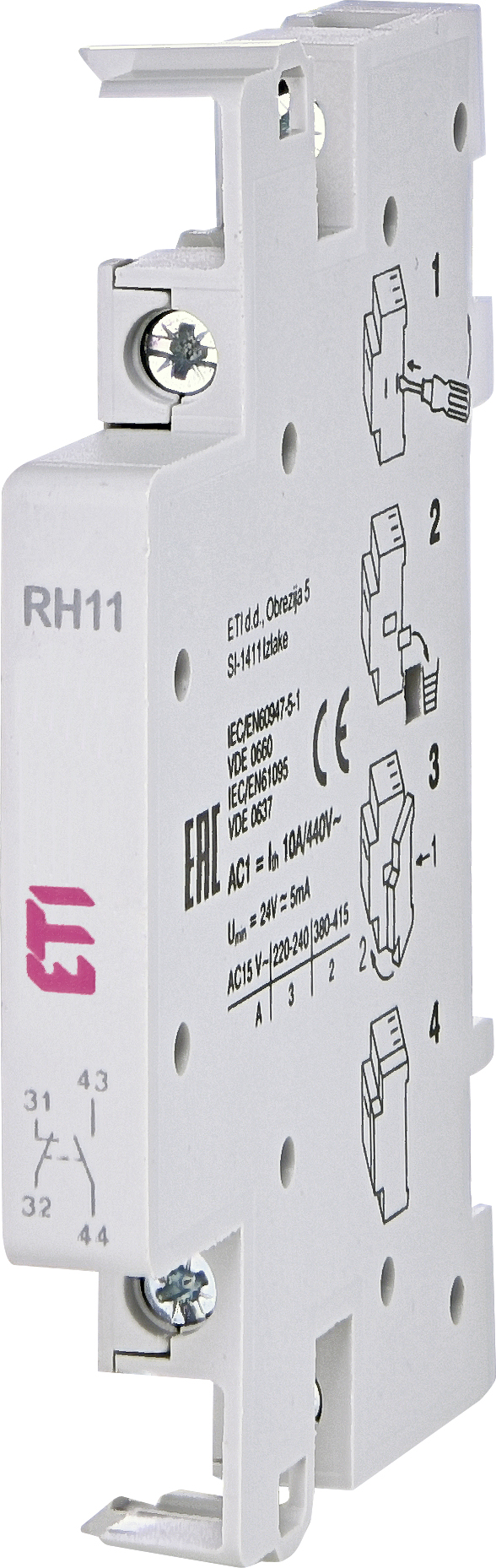

Images & Diagrams

002461101 Flush mounted enclosure Aux.contacts, RH 11 ETICON Modular contactors Type-R Accessories Accessories Accessories Contactors ETICON Modular Contactors for installation into distribution boards and accesories Accessories RH 11 Rated voltage 690V For use with Modular contactor Number of NC contacts 1 Function accessories Auxiliary contactor block for contactors R25, R40, R63 AC Aux.contacts RH Auxiliary contactor block for contactors R25, R40, R63 AC Modular contactor
