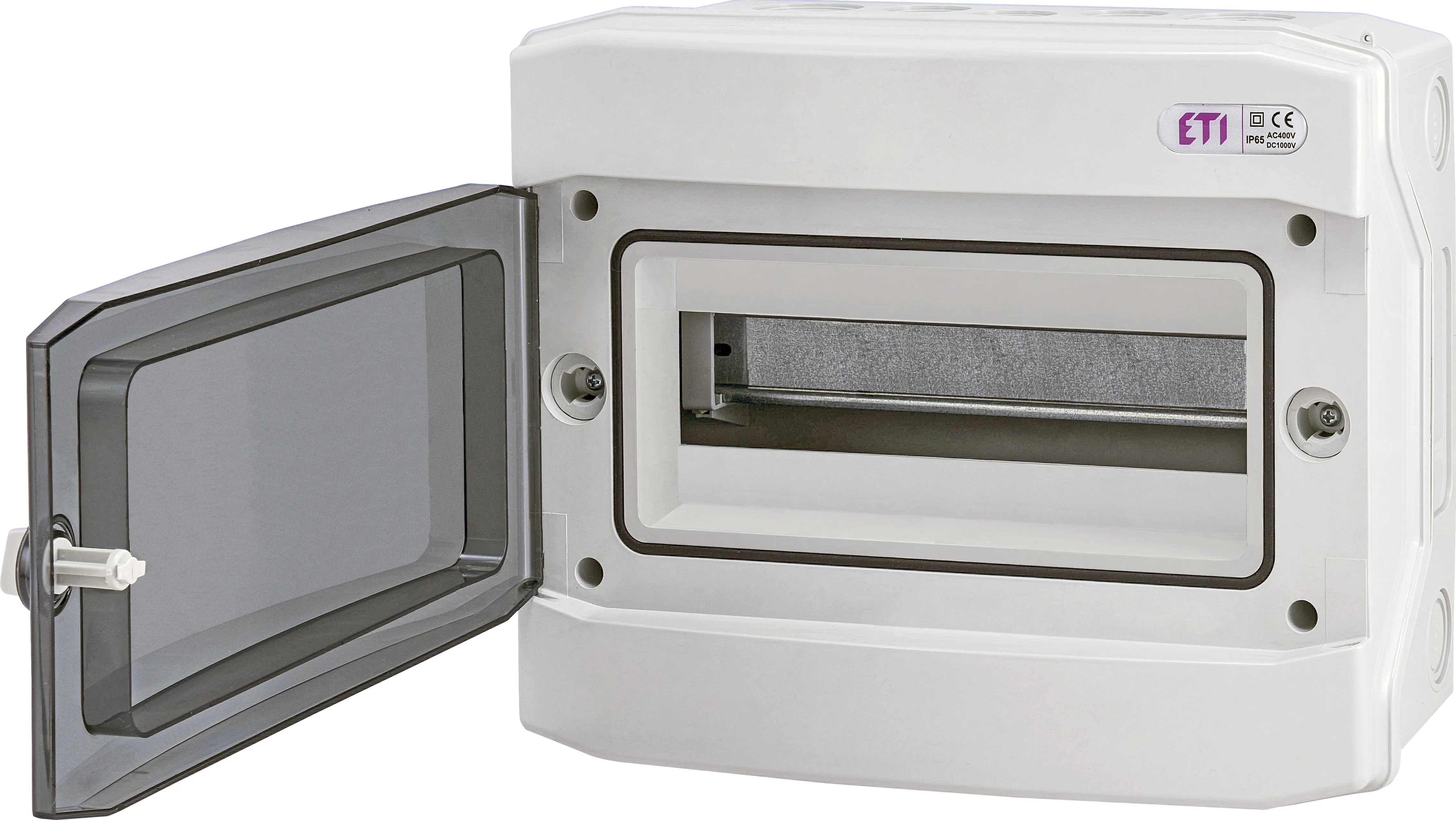

Distribution box ECH-12PT 001101062
Specifications
- ETI Code:
- 001101062
- Description:
- ECH-12PT
- Class name:
- Distribution box
- Protection Class:
- II
- Mounting type:
- Surface mounted
- Rated current (A):
- 63
- Rated voltage (V):
- 400
- Rated DC voltage (V):
- 1500
- IP rating:
- IP65
- Number of modules (Total/per row):
- 12 / 12
- Frame size (Number of rows):
- 1
- Door (material, color):
- Plastic, transparent
- Enclosure base (material, color):
- Plastic, grey
- Number of PE/N terminals (connections):
- 10 / 10
- Glow wire test (°C):
- 650
Documents
Logistic Data
Product
- Net weight of the product
- 1.24 kg
- Customs tariff
- 85381000
- logis_net_width
- 319 mm
- logis_net_height
- 259 mm
- logis_net_depth
- 150 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895551751
- Basic packaging weight
- 1.354 kg
Transport packaging
- Transport packaging quantity
- 5
- EAN code for a transport packaging
- 3838895551768
- Transport packaging weight
- 7.29 kg
- Pallet quantity
- 125
ETIM Clasification
- Classification
- EC000214
- Class name
- Small distribution board
- Mounting method
- Surface mounted (plaster)
- Number of rows
- 1
- Width in number of modular spacings
- 12
- Housing material
- Plastic
- Height
- 256mm
- Width
- 319mm
- Depth
- 144mm
- DIN-rail
- Yes
- EMC-version
- Yes
- Colour
- Grey
- RAL-number
- 7035
- Degree of protection (IP)
- IP65
