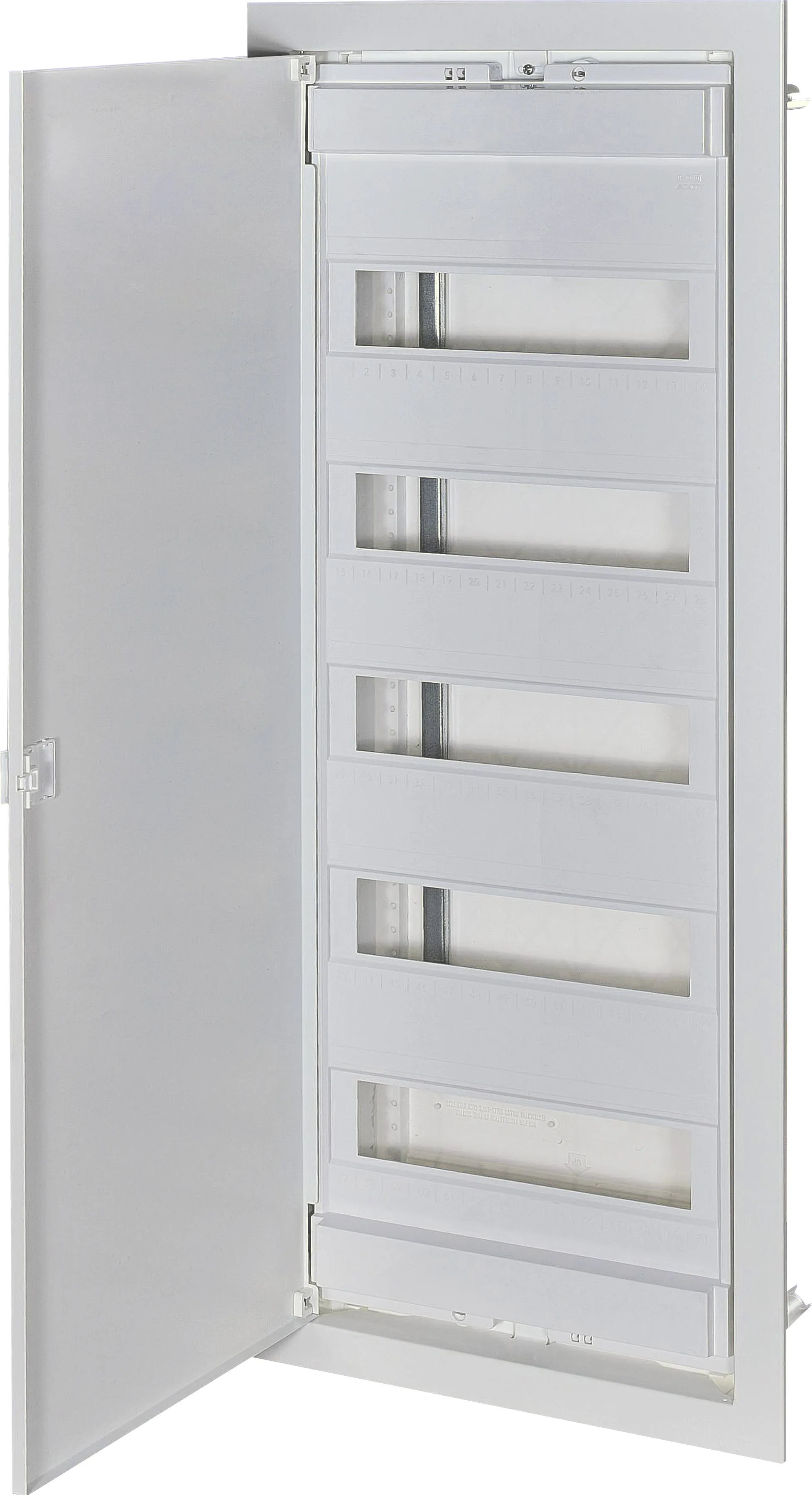

Distribution box ECG70H 001101169
Specifications
- ETI Code:
- 001101169
- Description:
- ECG70H
- Class name:
- Distribution box
- Mounting type:
- Flush-mounted/hollow wall
- Rated current (A):
- 63
- Rated voltage (V):
- 400
- IP rating:
- IP40
- Number of modules (Total/per row):
- 70 / 14
- Frame size (Number of rows):
- 5
- Door (material, color):
- Metal, white
- Enclosure base (material, color):
- Plastic, white
- Number of PE/N terminals (connections):
- 30 / 30
- Glow wire test (°C):
- 850
Documents
Logistic Data
Product
- Net weight of the product
- 5 kg
- Customs tariff
- 85381000
- logis_net_width
- 425 mm
- logis_net_height
- 842 mm
- logis_net_depth
- 94 mm
Transport packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 3838895821656
- Transport packaging weight
- 5 kg
- Pallet quantity
- 34
ETIM Clasification
- Classification
- EC000214
- Class name
- Small distribution board
- Mounting method
- Other
- Colour
- Other
- Degree of protection (IP)
- Other
