002471830

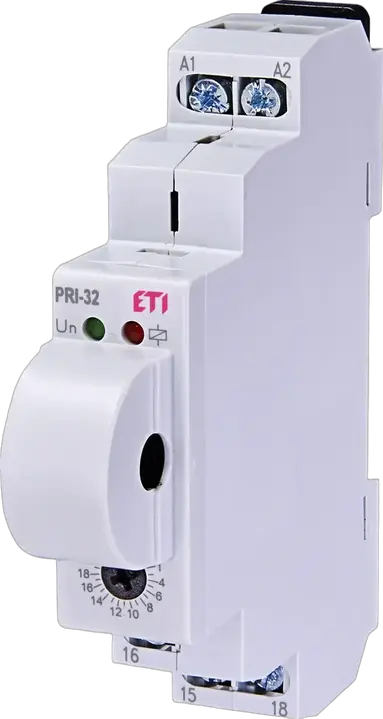

PRI-32 Control relay
- ETI Code:
- 002471830
- Category:
- Current monitoring relay PRI
- Type description:
- Current monitoring relay PRI
- Function:
- Monitoring and Control relays
- Supply Voltage:
- 24-240 V
- Number of contacts:
- 1
- Voltage type:
- AC/DC
- Maximum load capacity at AC1:
- 2,500 VA
- Rated current:
- 8 A
- No. of CO contacts:
- 1
5 Documents
8 Logistics
Product
- Net weight of the product
- 0.068 kg
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838895473381
- Transport packaging weight
- 0.07 kg
- Transport packaging volume
- 0.13 dm³
- Pallet quantity
- 11,429 pcs
- Customs tariff
- 85364900
1 Diagrams
20 Tags
002471830Control relayPRI-32EVE/ETIRELControl equipmentRelaysRelaysCurrent monitoring relayCurrent monitoring relayInternationalAutomation, signaling and control devicesMonitoring and control relays ETIRELVoltage type: AC/DCNumber of contacts: 1No. of CO contacts: 1Function: Monitoring and Control relaysMaximum load capacity at AC1: 2500 VASupply Voltage: 24 V-240 VRated current: 8 A/8 AControl relay Function: Monitoring and Control relays Supply Voltage: 24 V-240 V Number of contacts: 1 Voltage type: AC/DC Rated current: 8 A/8 A Maximum load capacity at AC1: 2500 VA No. of CO contacts: 1
