002471843

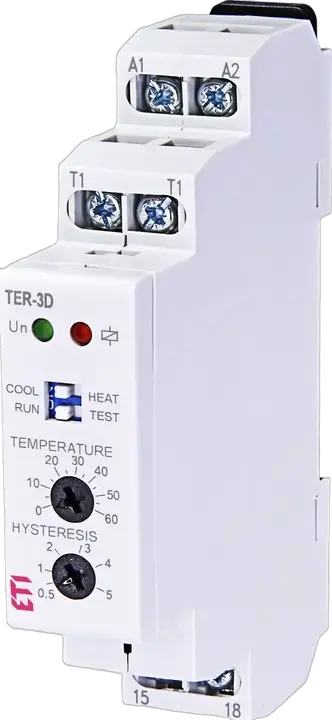

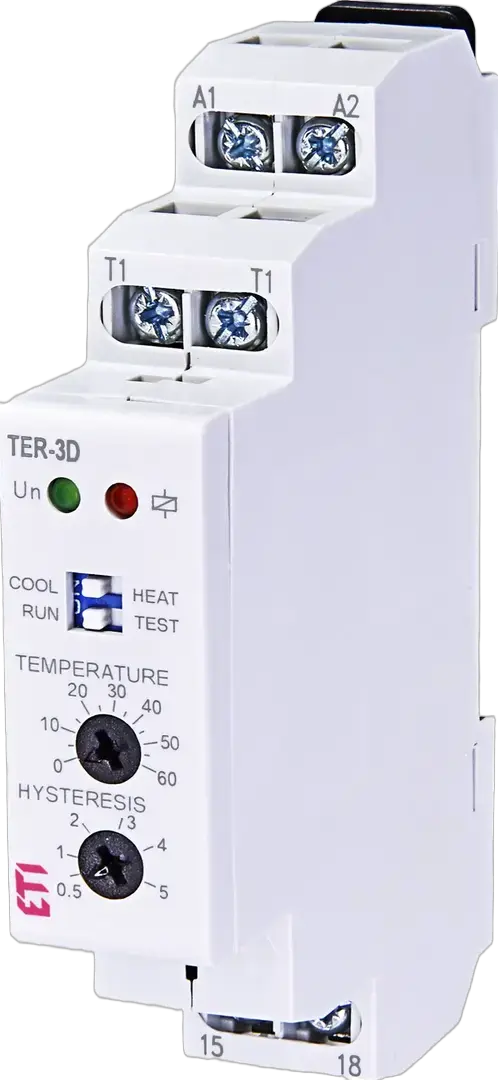

TER-3D Control relay
- ETI Code:
- 002471843
- Category:
- Thermostat relay TER-3 (A,B,C)
- Catalogue Group:
- Temperature monitoring relays
- Catalogue Subgroup:
- Thermostat relay
- Type description:
- Thermostat relay TER-3 (A,B,C)
- Function:
- Monitoring and Control relays
- Supply Voltage:
- 24-240 V
- Temperature range:
- 0-60 °C
- Sensor Type:
- external, termistor NTC
- Number of contacts:
- 1
- Rated current:
- 16 A
- Voltage type:
- AC/DC
- No. of CO contacts:
- 1
- Type of contacts:
- 1xCO
- Maximum load capacity at AC1:
- 4,000 VA
3 Documents
12 Logistics
Product
- Net weight of the product
- 0.67 kg
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895474142
- Basic packaging weight
- 0.073 kg
- Basic packaging volume
- 0.13 dm³
Transport Packaging
- Transport packaging quantity
- 10 pcs
- EAN code for a transport packaging
- 3838895474159
- Transport packaging weight
- 0.73 kg
- Transport packaging volume
- 1.3 dm³
- Pallet quantity
- 10,960 pcs
- Customs tariff
- 85364900
13 ETIM
- Model
- Analogue
- Number of channels
- 1
- Degree of protection (IP)
- IP20
- Contact type
- Breaker contact
- Assembly depth
- 64 mm
- Nominal switching current at 250 V, potential free
- 16 A
- Sensor type
- Remote sensor
- Standby power consumption (solstandby)
- 2 W
- Width in number of modular spacings
- 1
- Rated frequency(Min)
- 50 Hz
- Rated voltage(Min)
- 24 V
- Rated voltage(Max)
- 230 V
- Rated frequency(Max)
- 60 Hz
ETIM Classification – Version 9.0
25 Tags
002471843Control relayTER-3DEVE/ETIRELControl equipmentRelaysRelaysThermostat relayThermostat relayInternationalAutomation, signaling and control devicesThermostats ETIRELType of contacts: 1xCONo. of NC contacts: 0Voltage type: AC/DCNumber of contacts: 1No. of CO contacts: 1Temperature range: 0 °C-60 °CFunction: Monitoring and Control relaysMaximum load capacity at AC1: 4000 VANo. of NO contacts: 0Supply Voltage: 24 V-240 VSensor Type: external, termistor NTCRated current: 16 A/16 AControl relay Function: Monitoring and Control relays Supply Voltage: 24 V-240 V Temperature range: 0 °C-60 °C Number of contacts: 1 Rated current: 16 A/16 A Voltage type: AC/DC No. of NC contacts: 0 No. of CO contacts: 1 Type of contacts: 1xCO Maximum load capacity at AC1: 4000 VA No. of NO contacts: 0
