002921121

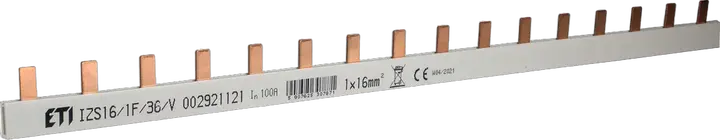

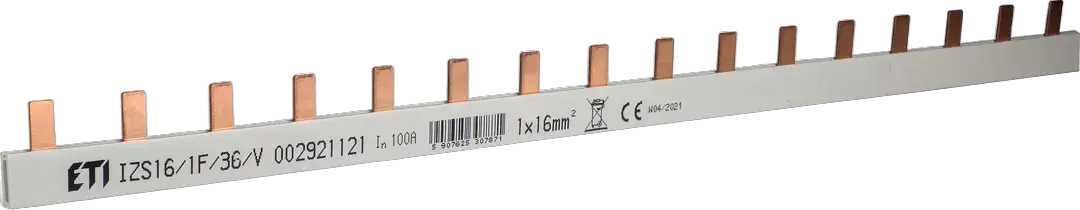

IZS16/1F/36/V (1m) Insulated busbar
- ETI Code:
- 002921121
- To use with:
- EFH DC 14, ETIMAT SM, STVD02, EFD 14
- Catalogue Group:
- IZ Section rails
- Type description:
- Pin type
- Number of poles:
- 1
- Function:
- Section rails
- Busbar type:
- PIN
- Rated current:
- 100 A
- Rated cross section:
- 16 mm²
- Lenght in modules:
- 1x36
- No. Of Phases:
- 1
- Voltage type:
- AC
- Rated AC voltage:
- 500 V
- Rated DC voltage:
- 500 V
- Type accessories:
- Section rails
3 Documents
12 Logistics
Product
- Net weight of the product
- 220 g
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 5907625307871
- Basic packaging weight
- 0.28 kg
- Basic packaging volume
- 0.3 dm³
Transport Packaging
- Transport packaging quantity
- 40 pcs
- EAN code for a transport packaging
- 5907625307888
- Transport packaging weight
- 11.2 kg
- Transport packaging volume
- 12 dm³
- Pallet quantity
- 2,840 pcs
- Customs tariff
- 85389099
7 ETIM
- Cross section
- 16 mm²
- Number of phases
- 1
- Rated permanent current Iu
- 100 A
- Module width
- 27 mm
- Length
- 1,000 mm
- Insulated
- Yes
- Type of electric connection
- Pin
ETIM Classification – Version 9.0
