002921133

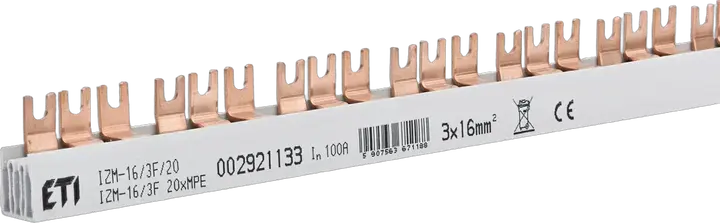

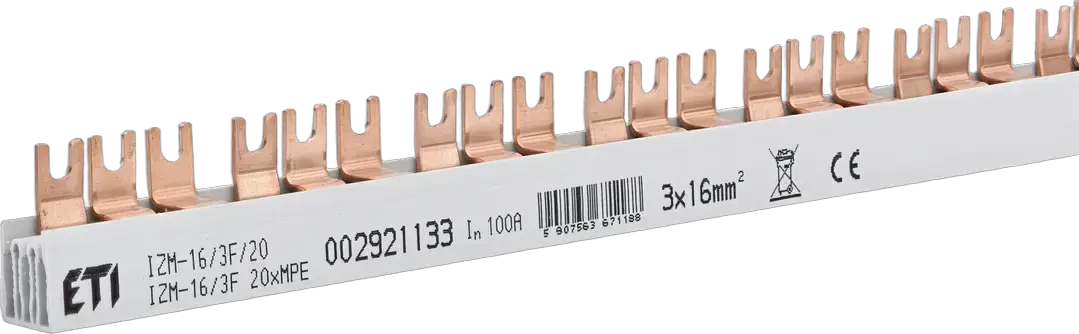

IZM-16/3F 20xMPE Insulated busbar
- ETI Code:
- 002921133
- To use with:
- ETIMAT 6, ETITEC, SV, VLD01, ETIMAT P10
- Catalogue Group:
- IZ Section rails
- Type description:
- Fork Type
- Function:
- Section rails
- Busbar type:
- FORK
- Rated current:
- 100 A
- Rated cross section:
- 16 mm²
- Lenght in modules:
- 1x60
- No. Of Phases:
- 3
- Rated AC voltage:
- 500 V
- Rated DC voltage:
- 500 V
- Type accessories:
- Section rails
5 Documents
12 Logistics
Product
- EAN code for a single product
- 3838400171054
- Net weight of the product
- 700 g
- Net width
- 1,000 mm
- Net height
- 32.8 mm
- Net depth
- 16.49 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 20 pcs
- EAN code for a transport packaging
- 5907563671195
- Transport packaging weight
- 13.4 kg
- Transport packaging volume
- 0.9 dm³
- Pallet quantity
- 1,200 pcs
- Customs tariff
- 85389099
8 ETIM
- Number of phases
- 3
- Rated permanent current Iu
- 100 A
- Suitable for number of devices
- 20
- Module width
- 15 mm
- Length
- 1,000 mm
- Max. rated operation voltage Ue
- 500 V
- Insulated
- Yes
- Type of electric connection
- Fork
ETIM Classification – Version 9.0
