002559001

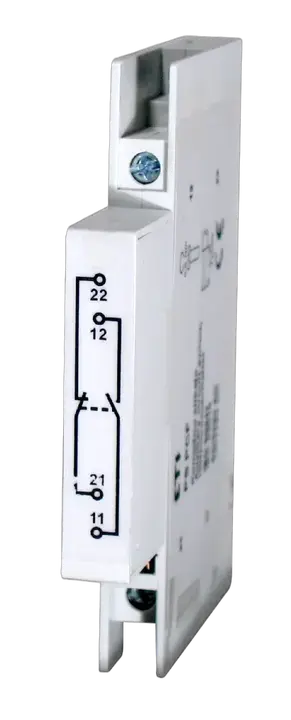

PCF 8x10 PS Auxilliary switch
- ETI Code:
- 002559001
- Product group:
- LV-fuse-switch disconnector
- Catalogue group:
- LV-fuse-switch disconnector
- Type of installation:
- Fuse-switch disconnector mounting
- No. of CO contacts:
- 1
- To use with:
- PCF 8, PCF 10
- Type accessories:
- Auxiliary switch
- Product group accessories:
- Fuse disconnector PCF
4 Documents
21 Logistics
Product
- Net weight of the product
- 0.04 kg
- Net width
- 10.3 mm
- Net height
- 83.3 mm
- Net depth
- 70.33 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895483571
- Basic packaging weight
- 0.048 kg
- Basic Packaging Dimensions Height
- 0.085 m
- Basic Packaging Dimensions Width
- 0.123 m
- Basic Packaging Dimensions Depth
- 0.218 m
- Basic packaging volume
- 0.002 m³
Transport Packaging
- Transport packaging quantity
- 10 pcs
- EAN code for a transport packaging
- 3838895483588
- Transport packaging weight
- 0.55 kg
- Transport Packaging Dimensions Height
- 0.081 m
- Transport Packaging Dimensions Width
- 0.123 m
- Transport Packaging Dimensions Depth
- 0.216 m
- Transport packaging volume
- 0.002 m³
- Pallet quantity
- 2,400 pcs
- Customs tariff
- 85365080
2 ETIM
- Number of contacts as normally open contact
- 1
- Number of contacts as change-over contact
- 1
ETIM Classification – Version 9.0
