002569001

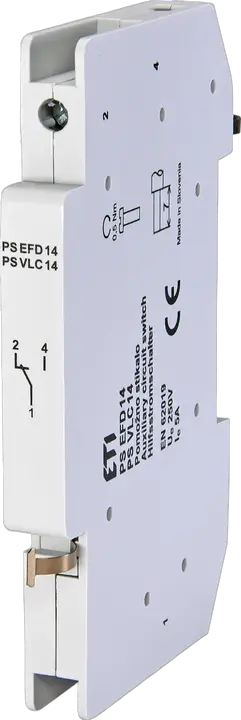

PS EFD14 & VLC14 Auxilliary switch
- ETI Code:
- 002569001
- Product group:
- LV-fuse-switch disconnector
- Catalogue Group:
- LV-fuse-switch disconnector
- Type of Installation:
- Fuse-switch disconnector mounting
- No. of CO contacts:
- 1
- To use with:
- EFD 14
- Type accessories:
- Auxiliary switch
- Product group accessories:
- Fuse disconnector VLC,EFD
4 Documents
21 Logistics
Product
- Net weight of the product
- 0.04 kg
- Net width
- 10.6 mm
- Net height
- 90 mm
- Net depth
- 64.15 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895184492
- Basic packaging weight
- 0.085 kg
- Basic Packaging Dimensions Height
- 0.079 m
- Basic Packaging Dimensions Width
- 0.096 m
- Basic Packaging Dimensions Depth
- 0.024 m
- Basic packaging volume
- 0 m³
Transport Packaging
- Transport packaging quantity
- 10 pcs
- EAN code for a transport packaging
- 3838895184508
- Transport packaging weight
- 0.92 kg
- Transport Packaging Dimensions Height
- 0.081 m
- Transport Packaging Dimensions Width
- 0.123 m
- Transport Packaging Dimensions Depth
- 0.216 m
- Transport packaging volume
- 0.002 m³
- Pallet quantity
- 2,400 pcs
- Customs tariff
- 85365080
6 ETIM
- Model
- Top mounting and integrable
- Mounting method
- Side mounting
- Rated operation current Ie at AC-15, 230 V
- 5 A
- Number of contacts as normally open contact
- 1
- Type of electric connection
- Screw connection
- Number of contacts as change-over contact
- 1
ETIM Classification – Version 9.0
