002212006

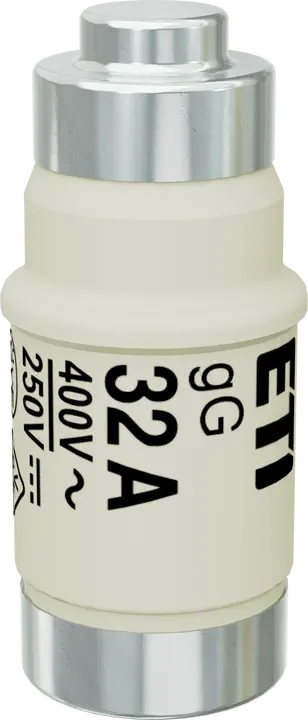

D02 gG 32A/400V Fuse link
- ETI Code:
- 002212006
- Product group:
- D0 low voltage Fuses
- Catalogue Group:
- D0 low voltage Fuses
- Type description:
- D0
- Fuse type:
- D0
- Size:
- D02
- Time-Current Characteristic:
- gG
- Rated AC voltage:
- 400 V
- Rated DC voltage:
- 250 V
- Rated current:
- 32 A
- Power dissipation:
- 3.5 W
- Breaking capacity AC:
- 50 kA
- Breaking capacity DC:
- 8 kA
- Prearcing joule integral (A2s):
- 2,620
- Operating joule integral (A2s):
- 4,840
- Indicator:
- Top fuse status indicator
- Standards:
- DIN EN 60269-1, DIN EN 60269-3
- Application:
- For cable protection
22 Logistics
Product
- EAN code for a single product
- 5904722934856
- Net weight of the product
- 13 g
- Net width
- 15.9 mm
- Net height
- 35.7 mm
- Net depth
- 15.9 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 10 pcs
- EAN code for a basic packaging
- 3838895138082
- Basic packaging weight
- 0.137 kg
- Basic Packaging Dimensions Height
- 38 mm
- Basic Packaging Dimensions Width
- 82 mm
- Basic Packaging Dimensions Depth
- 32 mm
- Basic packaging volume
- 0.1 dm³
Transport Packaging
- Transport packaging quantity
- 500 pcs
- EAN code for a transport packaging
- 3838895163473
- Transport packaging weight
- 7.05 kg
- Transport Packaging Dimensions Height
- 0.178 m
- Transport Packaging Dimensions Width
- 0.21 m
- Transport Packaging Dimensions Depth
- 0.17 m
- Transport packaging volume
- 0.006 m³
- Pallet quantity
- 60,000 pcs
- Customs tariff
- 85361050
4 ETIM
- Colour code
- Black
- Construction size
- D02
- Rated voltage
- 400 V
- Rated current
- 32 A
ETIM Classification – Version 9.0
