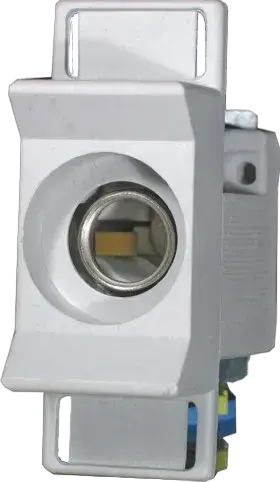

D02 E18 63A V M5 1p Fuse - base
- ETI Code:
- 002222005
- To use with:
- D0 fuse-links
- Catalogue Group:
- LV-fuse base
- Standards:
- IEC60269
- Application:
- Residential and industrial installation
- Type description:
- D02 Without protection cover
- Type of Installation:
- Base plate mounting
- Size:
- D02
- Product group:
- LV-fuse base
- Rated AC voltage:
- 400 V
- Rated DC voltage:
- 400 V
- Rated current:
- 63 A
- Number of poles:
- 1
22 Logistics
Product
- EAN code for a single product
- 3838400029980
- Net weight of the product
- 0.085 kg
- Net width
- 27.5 mm
- Net height
- 60.3 mm
- Net depth
- 39.7 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 60 pcs
- EAN code for a basic packaging
- 3838895007425
- Basic packaging weight
- 5.2 kg
- Basic Packaging Dimensions Height
- 0.115 m
- Basic Packaging Dimensions Width
- 0.169 m
- Basic Packaging Dimensions Depth
- 0.285 m
- Basic packaging volume
- 0.006 m³
Transport Packaging
- Transport packaging quantity
- 180 pcs
- EAN code for a transport packaging
- 3838895716419
- Transport packaging weight
- 16.4 kg
- Transport Packaging Dimensions Height
- 0.215 m
- Transport Packaging Dimensions Width
- 0.37 m
- Transport Packaging Dimensions Depth
- 0.375 m
- Transport packaging volume
- 0.03 m³
- Pallet quantity
- 5,400 pcs
- Customs tariff
- 85389099
6 ETIM
- Mounting method
- Screw mounting
- Construction size
- D02
- Number of poles
- 1
- Rated voltage
- 400 V
- Rated current
- 63 A
- Material
- Porcelain
