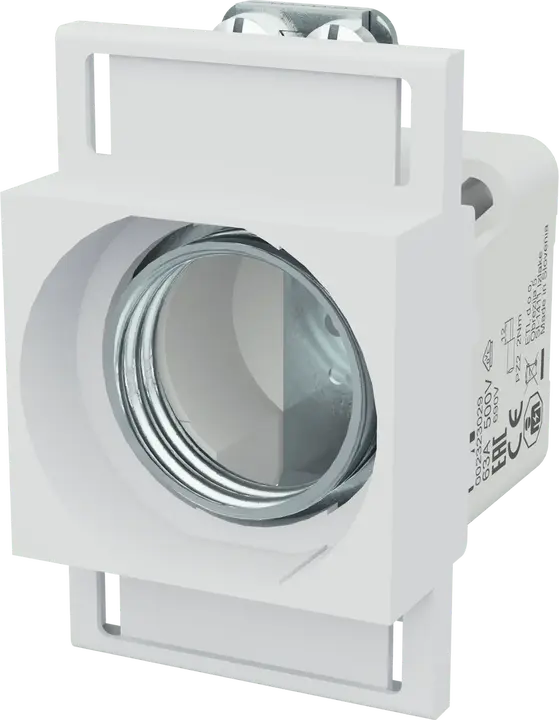

DIII E33 63A EZV 1p+ZP Fuse - base
- ETI Code:
- 002323029
- To use with:
- D fuse-links
- Rated DC voltage:
- 500 V
- Product group:
- LV-fuse base
- Catalogue Group:
- LV-fuse base
- Standards:
- IEC60269
- Application:
- Residential and industrial installation
- Type description:
- EZV
- Size:
- DII
- Number of poles:
- 1
- Rated current:
- 63 A
- Rated AC voltage:
- 500 V
- Type of Installation:
- Base plate mounting
16 Logistics
Product
- EAN code for a single product
- 3838400029560
- Net weight of the product
- 170 g
- Net width
- 50 mm
- Net height
- 82 mm
- Net depth
- 57 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 10 pcs
- EAN code for a basic packaging
- 3838895002543
- Basic packaging weight
- 1.63 kg
- Basic packaging volume
- 3.63 dm³
Transport Packaging
- Transport packaging quantity
- 60 pcs
- EAN code for a transport packaging
- 3838895717348
- Transport packaging weight
- 10.3 kg
- Transport packaging volume
- 33.7 dm³
- Pallet quantity
- 1,440 pcs
- Customs tariff
- 85389099
8 ETIM
- Model
- Fitted screw
- Mounting method
- Bottom mounting
- Construction size
- DII
- Version with cover
- Yes
- Number of poles
- 1
- Rated voltage
- 500 V
- Rated current
- 63 A
- Material
- Porcelain
