001691029

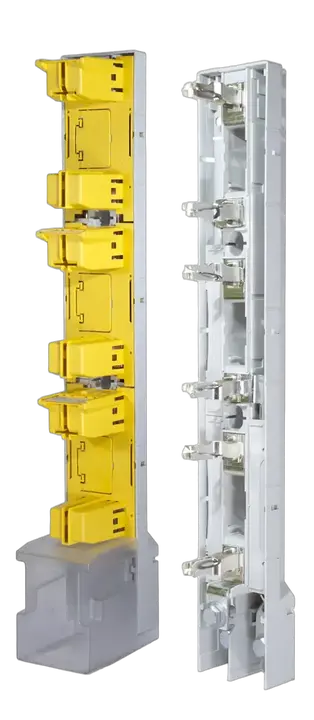

VL2 M12x35 Strip-fuseway
- ETI Code:
- 001691029
- Number of poles:
- 3
- Type of Installation:
- Busbar mounting
- Size:
- NH2
- Rated current:
- 400 A
- Rated AC voltage:
- 690 V
5 Documents
14 Logistics
Product
- Net weight of the product
- 4.04 kg
- Net width
- 99 mm
- Net height
- 675.7 mm
- Net depth
- 155.36 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 4029155763093
- Transport packaging weight
- 3.851 kg
- Transport Packaging Dimensions Height
- 205 mm
- Transport Packaging Dimensions Width
- 764 mm
- Transport Packaging Dimensions Depth
- 100 mm
- Transport packaging volume
- 15.662 dm³
- Pallet quantity
- 50 pcs
- Customs tariff
- 85389099
3 ETIM
- Construction size
- NH2
- Number of poles
- 3
- Rated current
- 400 A
ETIM Classification – Version 9.0
1 Diagrams
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
