001695280

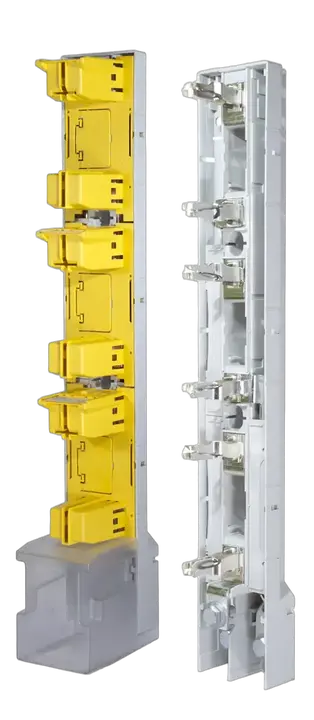

VL1H M10 Strip-fuseway
- ETI Code:
- 001695280
- Number of poles:
- 3
- Type of Installation:
- Busbar mounting
- Size:
- NH1
- Rated current:
- 250 A
- Rated AC voltage:
- 690 V
11 Logistics
Product
- Net weight of the product
- 3.22 kg
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838895752691
- Transport packaging weight
- 3.25 kg
- Transport Packaging Dimensions Height
- 101 mm
- Transport Packaging Dimensions Width
- 197 mm
- Transport Packaging Dimensions Depth
- 764 mm
- Transport packaging volume
- 15.201 dm³
- Pallet quantity
- 50 pcs
- Customs tariff
- 85363090
3 ETIM
- Construction size
- NH1
- Number of poles
- 3
- Rated current
- 250 A
ETIM Classification – Version 9.0
