004661861
Obsolete

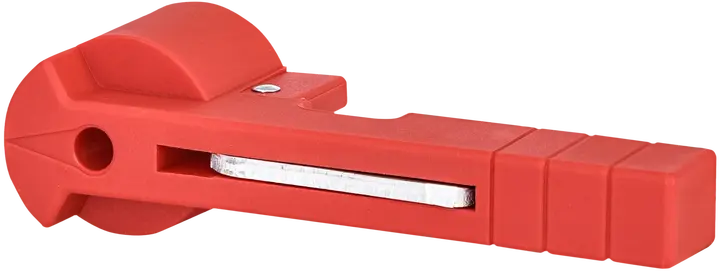

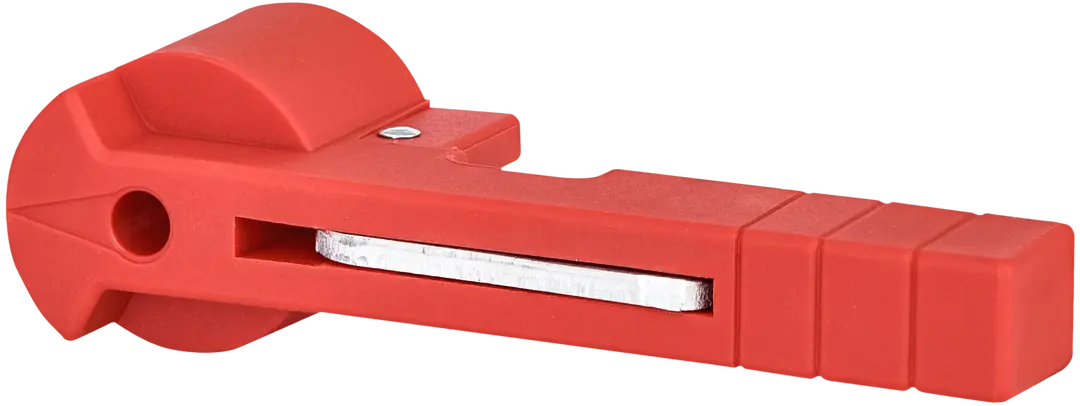

*LBS-DH630/R Handle
- ETI Code:
- 004661861
- To use with:
- LBS 100-500DC (1000V, 1500V)
- Catalogue Group:
- Accesories for LBS
- Type description:
- Red
- Function:
- Accessories
- Function accessories:
- Direct handle, red
5 Documents
21 Logistics
Product
- Net weight of the product
- 0.103 kg
- Net width
- 135 mm
- Net height
- 40 mm
- Net depth
- 45.5 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895823797
- Basic packaging weight
- 0.103 kg
- Basic Packaging Dimensions Height
- 50 mm
- Basic Packaging Dimensions Width
- 35 mm
- Basic Packaging Dimensions Depth
- 134 mm
- Basic packaging volume
- 0.234 dm³
Transport Packaging
- Transport packaging quantity
- 80 pcs
- EAN code for a transport packaging
- 3838895823803
- Transport packaging weight
- 8.24 kg
- Transport Packaging Dimensions Height
- 290 mm
- Transport Packaging Dimensions Width
- 260 mm
- Transport Packaging Dimensions Depth
- 132 mm
- Transport packaging volume
- 9.953 dm³
- Pallet quantity
- 4,000 pcs
- Customs tariff
- 39269097
1 ETIM
- Type of accessory/spare part
- Other
ETIM Classification – Version 9.0
