002462103

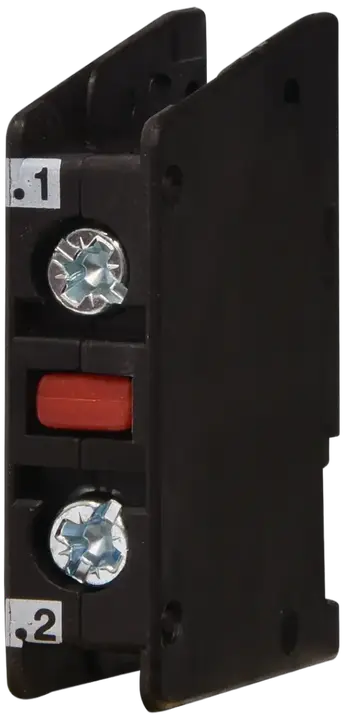

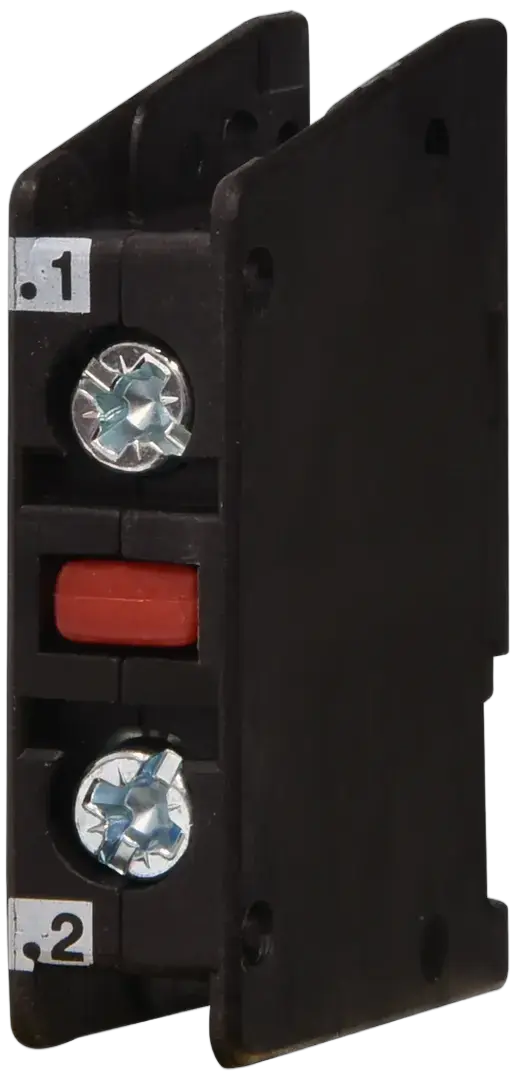

CEB-BCF 01 Aux.contacts
- ETI Code:
- 002462103
- To use with:
- CEB10…CEB74
- Function:
- Accessories
- Function accessories:
- Auxiliary contact blocks-front mounted
19 Logistics
Product
- EAN code for a single product
- 3838400153524
- Net weight of the product
- 0.015 kg
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 10 pcs
- EAN code for a basic packaging
- 3838400117465
- Basic packaging weight
- 0.18 kg
- Basic Packaging Dimensions Height
- 56 mm
- Basic Packaging Dimensions Width
- 79 mm
- Basic Packaging Dimensions Depth
- 35 mm
- Basic packaging volume
- 0.155 dm³
Transport Packaging
- Transport packaging quantity
- 800 pcs
- EAN code for a transport packaging
- 3838400117656
- Transport packaging weight
- 14.65 kg
- Transport Packaging Dimensions Height
- 390 mm
- Transport Packaging Dimensions Width
- 190 mm
- Transport Packaging Dimensions Depth
- 230 mm
- Transport packaging volume
- 17.043 dm³
- Pallet quantity
- 40,000 pcs
- Customs tariff
- 85389099
5 ETIM
- Number of contacts as normally closed contact
- 1
- Model
- Clip-on
- Mounting method
- Front fastening
- Rated operation current Ie at AC-15, 230 V
- 6 A
- Type of electric connection
- Screw connection
ETIM Classification – Version 9.0
0 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
